ROCKSOLAR 12V 200Ah Deep Cycle Lithium Battery (LIFEPO4)
solar industry experience
10,000+ American
customers
return policy
Warranty
What it is, and what it is for

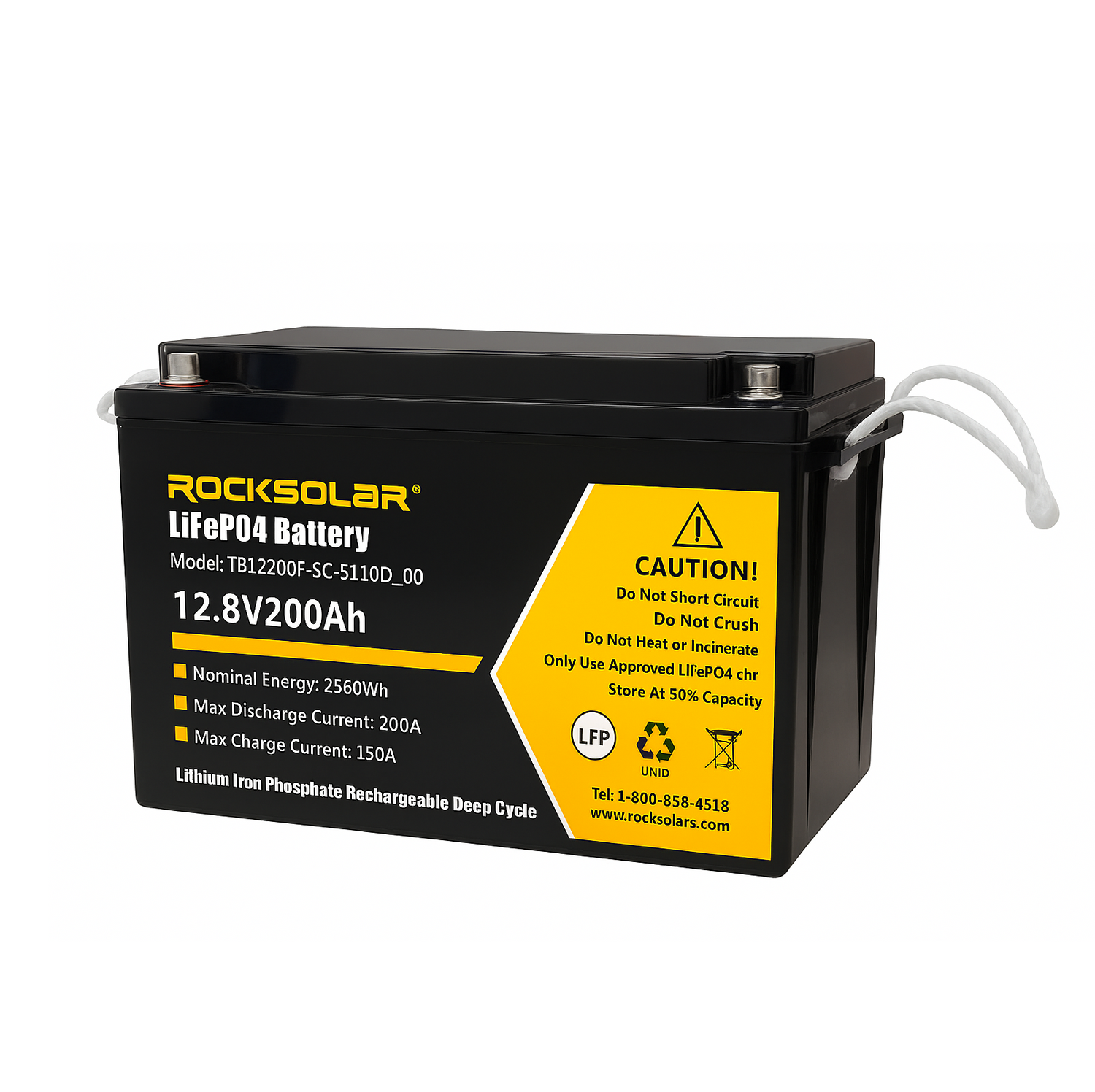

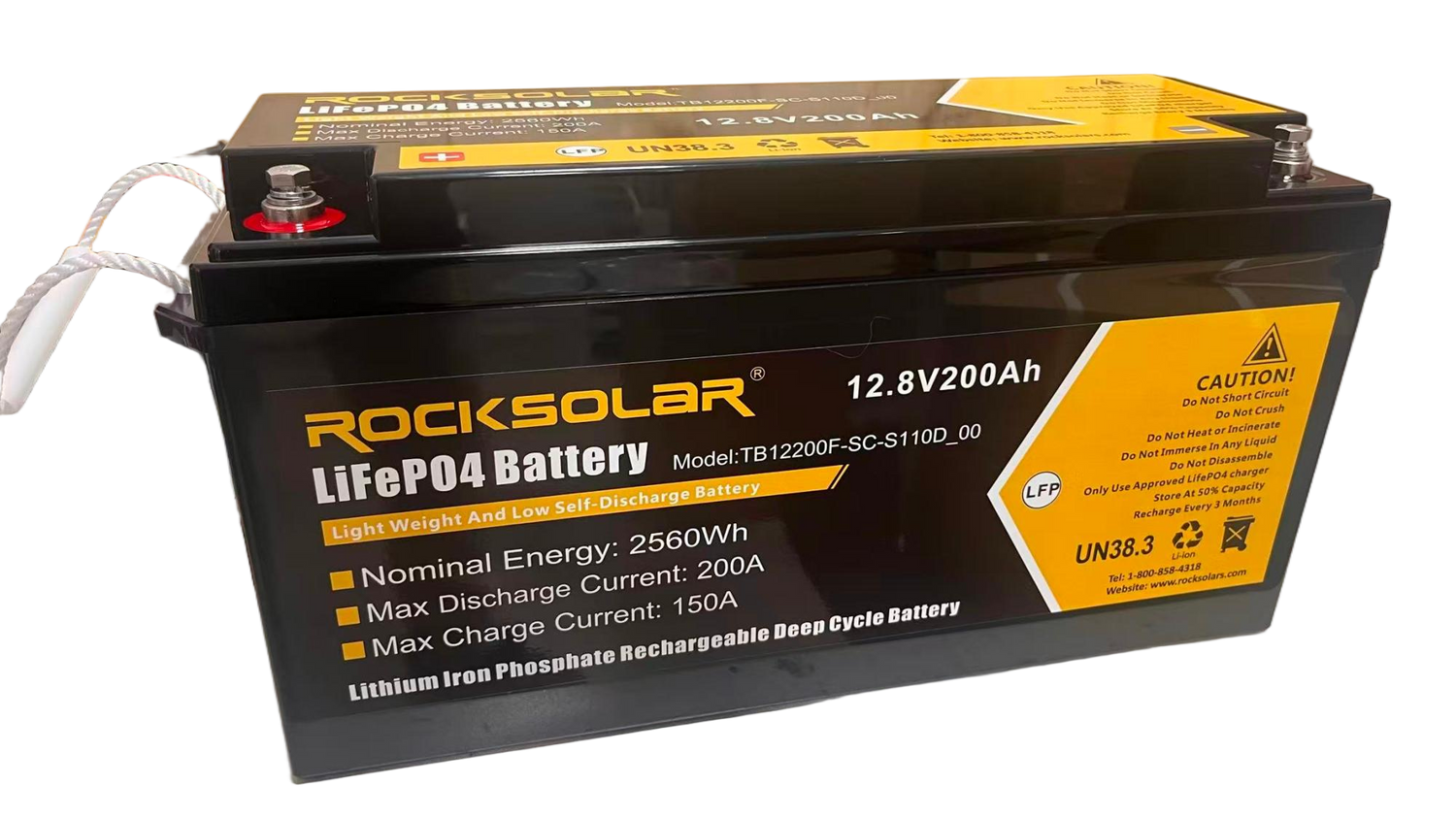

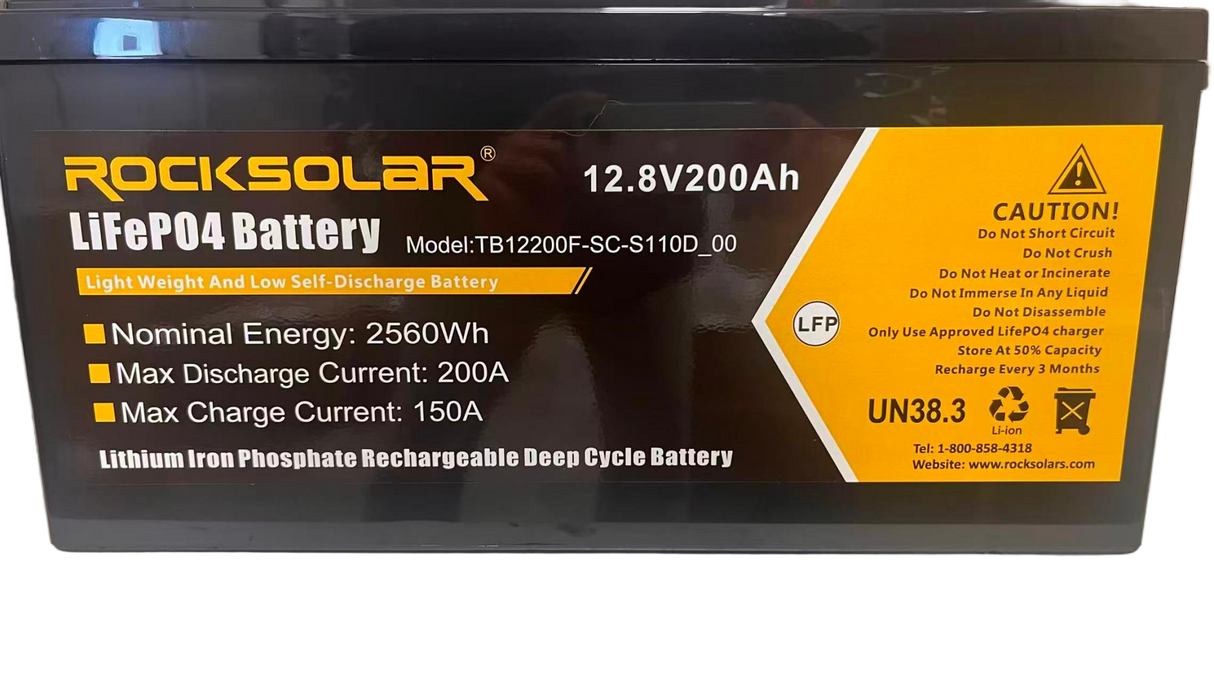

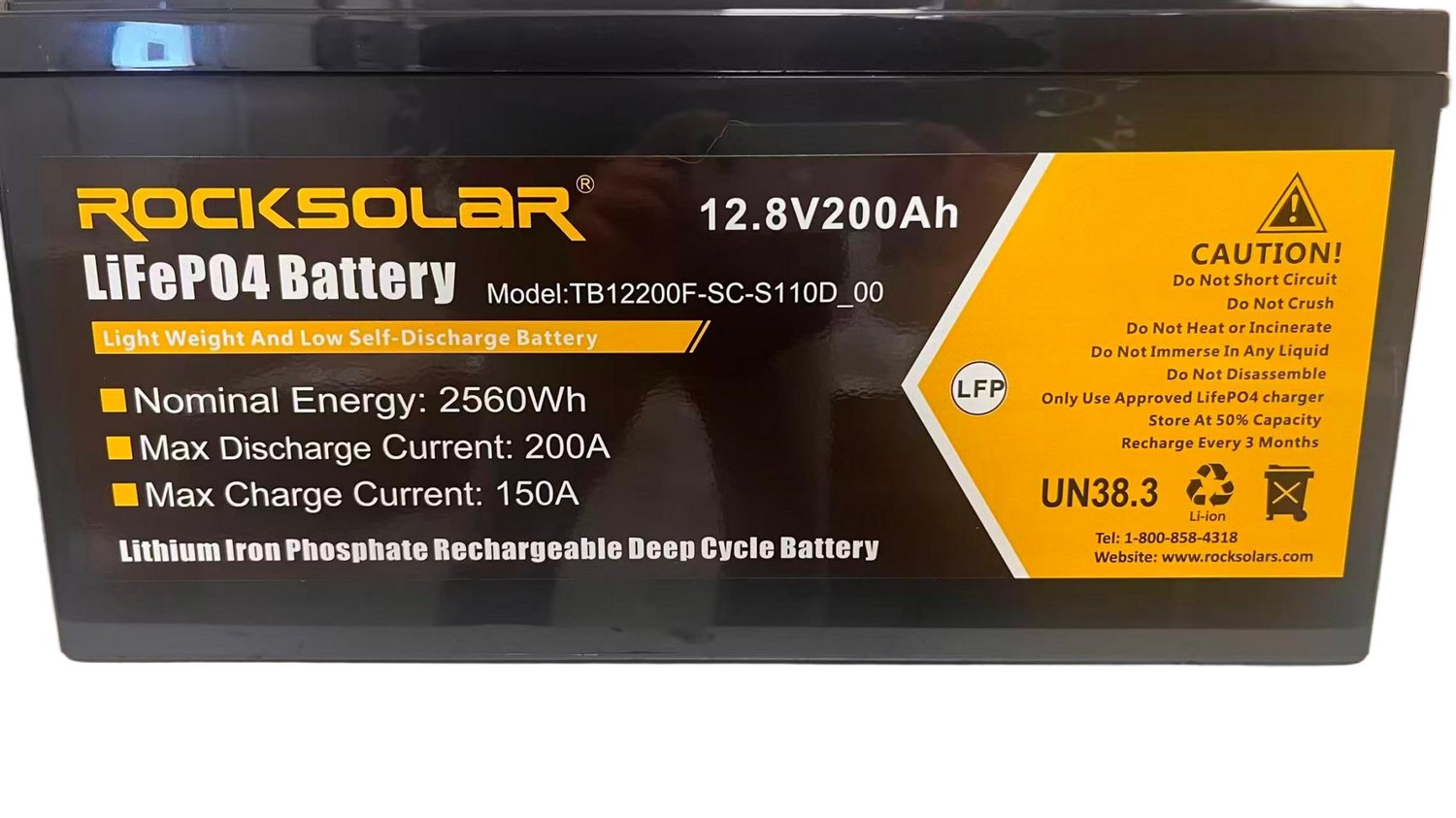

ROCKSOLAR 12V 200Ah Deep Cycle LiFePO4 Battery
Cycle Life: Rated for at least 6,000 cycles under the manufacturer's test conditions: 25 ± 2°C, normal charging and 0.2C discharge at 80% depth of discharge, until capacity falls to 80% of its initial value. Actual cycle life varies with temperature, load and operating conditions. This cycle-test depth of discharge is separate from the estimated usable-energy planning figure below.
Model: R-T12200B, non-heated version. No built-in heater or self-heating function.
Discharge Current: 200A continuous; 600A peak for 3 seconds. The peak rating is short-duration only and must not be treated as a continuous discharge rating.
Discharge Cut-off Voltage: 10V, as stated in the user manual. Follow the manufacturer’s discharge limits and use compatible system protection settings.
Consistent Power Supply: Delivers steady energy output using flat voltage curve technology.
Superior BMS: Integrated system for protection against temperature changes, over-discharge, over-charge, and short circuits.

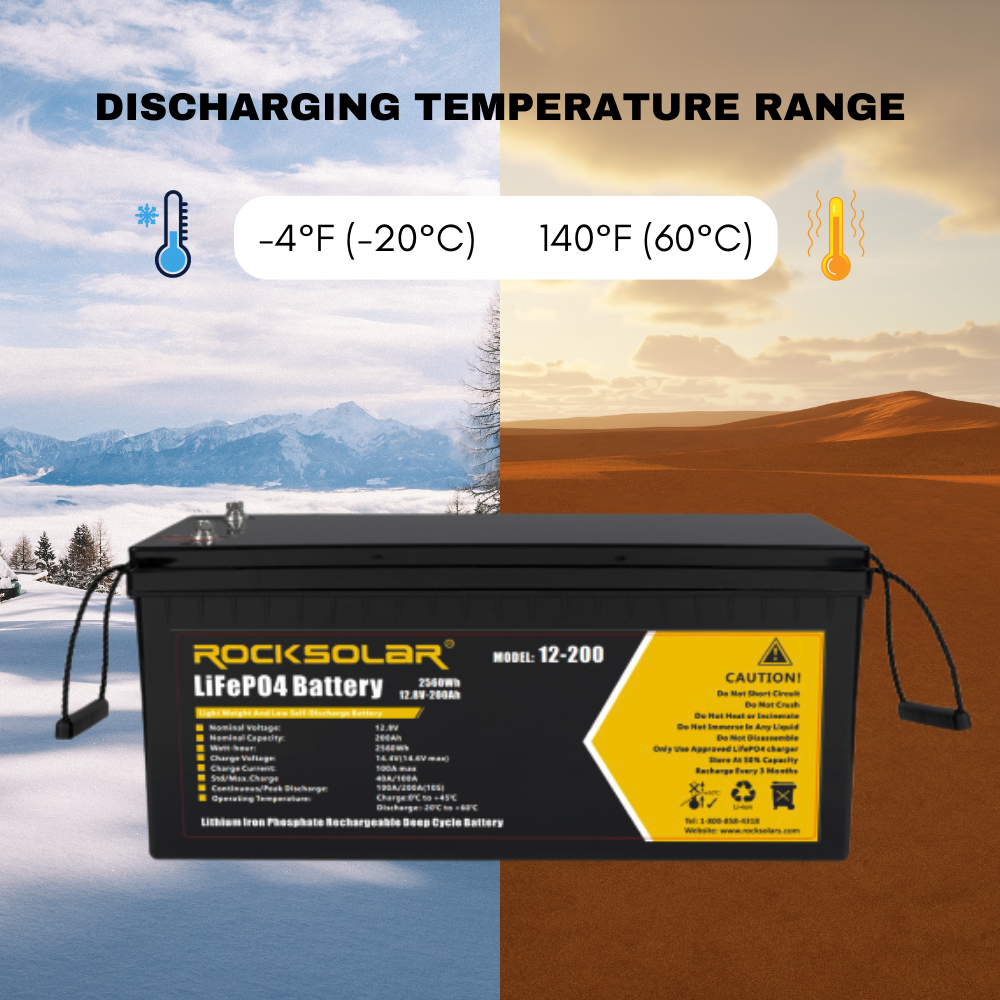

Discharge Temperature: Operates effectively between -20°C to 60°C, suitable for challenging environments.
Charging Temperature: Charge only within 0°C to 45°C. This non-heated model has no built-in heater. Do not charge below 0°C or rely on the BMS as a substitute for following the permitted charging range.
Enhanced Safety: Features cell balancing and over-current protection for longevity.
Global Standards: Compliant with UN38, IEC62133, and ISO 9001:2015.
10-Year Warranty: Demonstrates robust construction and reliability.
Multipurpose Usage: Ideal for marine, solar systems, RVs, and other large-scale power requirements.
Charging Specifications (User Manual)
- Charge voltage: 14.4–14.6V.
- Float voltage: 13.6–13.8V.
- Standard charging current: 40A.
- Maximum charging current: 100A.
- Charging temperature: 0–45°C. This non-heated model has no built-in heater; do not charge below 0°C.
Weight and Dimensions (User Manual)
- Battery weight: Approximately 23 kg (50.7 lb).
- Dimensions (L × W × H): Approximately 485 × 172 × 231 mm (19.09 × 6.77 × 9.09 inches).
Nominal and Estimated Usable Battery Energy
Nominal battery energy: 2.56 kWh. Estimated usable battery energy: 2.432 kWh (95% of nominal). No separate usable-energy rating is stated in the linked ROCKSOLAR battery specification, so this is a planning estimate, not a manufacturer-tested usable-energy guarantee. Actual available energy varies with temperature, load, battery age, BMS limits and system settings. AC energy is lower after inverter losses. Always follow manufacturer charging and discharge limits.
