Breaker

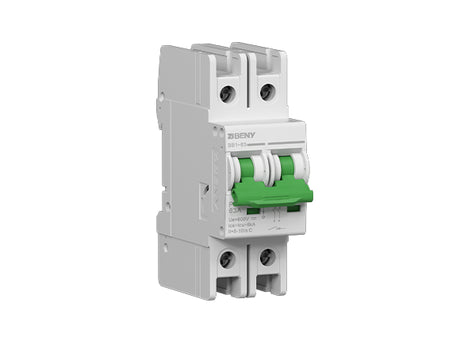

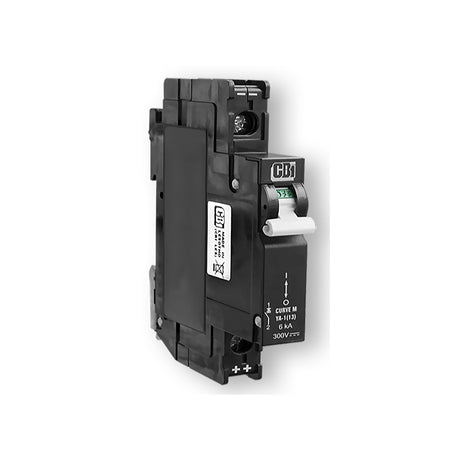

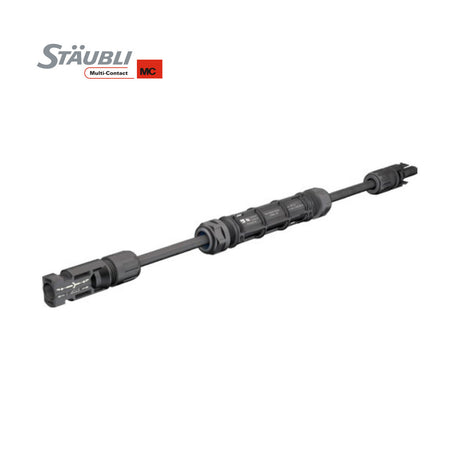

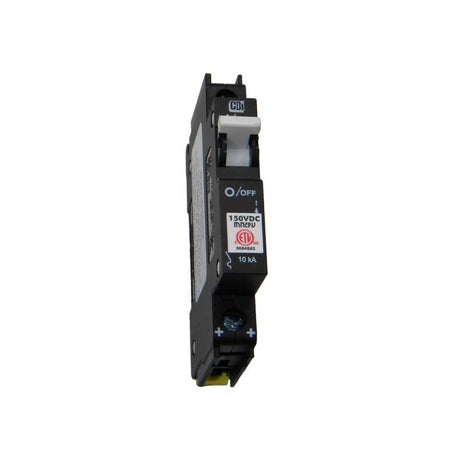

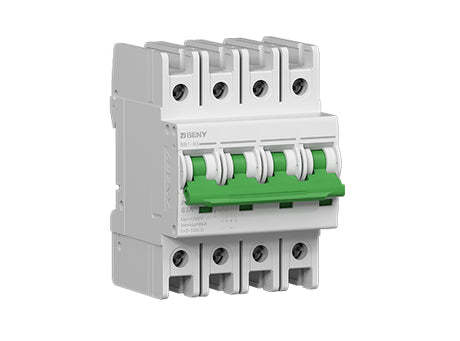

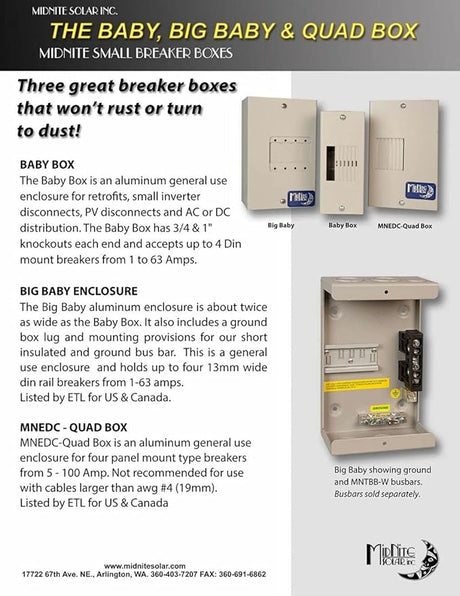

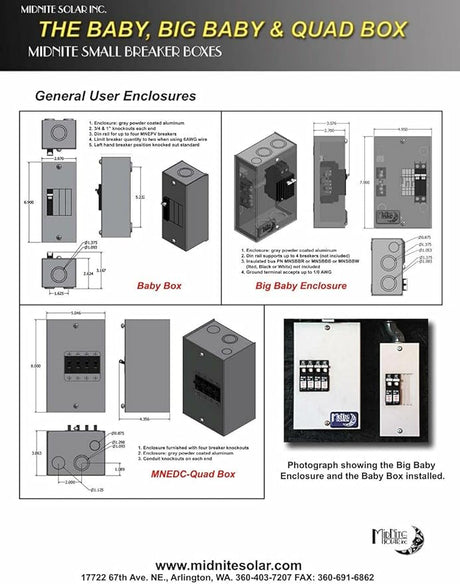

DC overcurrent protection and disconnects for the PV and battery side of a solar system: MidNite Solar DIN-rail DC breakers at 150 V and 300 V from 15 A to 63 A, 600 V two-pole breakers for higher-voltage strings, the Baby Box and Big Baby enclosures to mount them in, and Staubli MC4 in-line fuses at 10, 15 and 20 A for a string.
Read moreRead less
Between an array and a charge controller, size the breaker at 1.25 times the array's short-circuit current and at least the controller's rated input; between a battery and an inverter, size it to the inverter's continuous DC current with the same margin, and check the breaker's DC voltage rating against your bank. Every breaker here is rated for DC; an AC breaker is not a substitute.
These parts are specified by a licensed electrician to the NEC and your local code. If you send us the inverter or controller model and the array layout, we will list the protection it needs.
