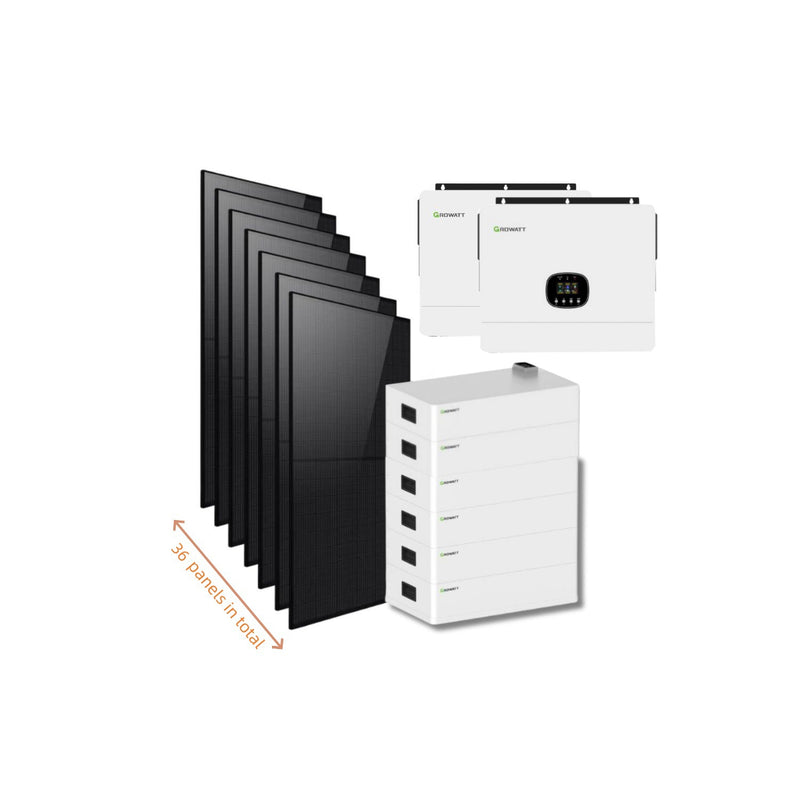

24kW Off-Grid Solar System with 15.84kW Panels & 57.36kWh Battery

$21,999.99 $39,999.99

Questions or Bulk Orders?

Pickup currently unavailable at USA Fulfillment Center

Talk to Real Experts Anytime

Lifetime tech support from our in-house specialists

Hassle Free Warranty

Effortless Warranty for Your Ease.

Unbeatable Value, Guaranteed

Find it cheaper elsewhere? We'll match it.

Over 25 years of
solar industry experience

Trusted by
10,000+ American
customers

Hassle-free 30-day
return policy

Industry-Leading
Warranty

About this system

What it is, and what it is for

Power large homes, farms, estates, workshops, and remote properties with the ROCKSOLAR 24kW Off-Grid Solar System. Featuring 2 × Growatt SPE12000 US 12kW inverters, a 15.84kW solar array, and 57.36kWh of GSL LiFePO4 battery storage, this high-capacity system delivers reliable 120/240V split-phase power for demanding off-grid applications.

Key Features

24kW total inverter output
2 × Growatt SPE12000 US 12kW inverters
120/240V split-phase pure sine wave power
36 × JA Solar JAM54D41 450W solar panels
15.84kW total solar array
4 × 14.34kWh GSL LiFePO4 batteries
57.36kWh total battery storage
Integrated MPPT solar charging
Generator charging support
SHINE WiFi system monitoring
Expandable off-grid design

57.36kWh GSL LiFePO4 Battery Storage

Four GSL 51.2V 280Ah LiFePO4 batteries provide substantial energy storage for larger off-grid properties.

14.34kWh per battery
57.36kWh total nominal storage
51.2V / 280Ah
90% recommended depth of discharge
8,500+ cycle life
Integrated BMS
CAN, RS485 & WiFi communication
IP65-rated enclosure
Expandable battery architecture
15-year warranty

120/240V High-Capacity Off-Grid Power

Two parallel Growatt SPE12000 US inverters provide 24kW total AC output, supporting both 120V and 240V loads. This makes the system suitable for larger homes, appliances, well pumps, workshops, farm equipment, and other compatible high-demand loads.

Actual runtime depends on solar production, battery state of charge, and connected loads.

System Specifications

Specification	Details
Inverters	2 × Growatt SPE12000 US
Total Output	24kW
AC Output	120/240V Split Phase
Solar Array	15.84kW
Solar Panels	36 × JA Solar JAM54D41 450W
Battery Storage	57.36kWh
Battery Configuration	4 × GSL 14.34kWh
Battery Chemistry	LiFePO4
Generator Charging	Supported
Monitoring	SHINE WiFi

What’s Included

2 × Growatt SPE12000 US 12kW Off-Grid Inverters
4 × GSL 51.2V 280Ah 14.34kWh LiFePO4 Batteries
36 × JA Solar JAM54D41 450W Solar Panels
6 × 20A / 300V PV DC Breakers
1 × Breaker Box
6 × 40 ft 10 AWG PV Cables
2 × SHINE WiFi Monitoring Module

The live product page confirms this component configuration.

Warranty & Support

GSL 14.34kWh Batteries: 15-Year Warranty
Growatt SPE12000 US Inverters: 5-Year Standard Warranty
JA Solar JAM54D41 450W Solar Panels: 12-year product warranty, 30-year linear power warranty
Solar Panel Service Life: 30+ Years
Lifetime ROCKSOLAR Technical Support

Powerful Off-Grid Energy for Large Properties

With 24kW of inverter power, 15.84kW of solar generation, and 57.36kWh of LiFePO4 battery storage, this complete system is ideal for large off-grid homes, farms, estates, workshops, homesteads, and remote facilities across the USA.

What ships

6 components, and one thing that isn't here

Each one is a product we sell on its own, so you can read its full listing, and replace or add to it later.

Racking and mounting are not included.

Rails, roof hooks, ground-mount posts and clamps depend on the roof or ground they go on, so no system ships with them. They are sold separately, and the finder adds the right pack for your surface when it sizes a system.

Documentation

Published before you buy. No email required.

The wiring diagram and the commissioning record are drawn from this system's own figures.

The wiring diagram and commissioning record are for customer reference only. They are not a stamped design. Installation, grounding and any grid connection must be carried out by a licensed electrician, and a professional engineer's review is required where your jurisdiction calls for one.

Full specification

Every number, by component.

The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.

GSL Energy 14.34kWh 51.2V 280Ah LiFePO₄ Battery	Details
Manufacturer	GSL Energy
Battery Chemistry	LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage	51.2V
Capacity	280Ah
Total Energy	14.34kWh
Usable Energy (80% DoD)	11.47kWh
Recommended Charge / Discharge Current	150A
Maximum Charge / Discharge Current	200A
Peak Discharge Current (2 min @ 25°C)	100A
Cycle Life	≥8,500 cycles @ 80% DoD
Operating Temperature (Charge)	0°C to 55°C
Operating Temperature (Discharge)	-20°C to 55°C
Installation Type	Ground / Outdoor Installation
Ingress Protection	IP65
Scalability	Up to 16 units in parallel (229kWh total)
Communication Interfaces	CAN 2.0, RS485, WiFi, Bluetooth
Dimensions (W × H × D)	700 × 1050 × 200 mm
Weight	Approx. 128.5 kg
Warranty	15 Years
Certifications	UL1973, UL9540A, UL9540, IEC62619, CE-EMC, UN38.3, MSDS

Growatt SPE 12000-US	Details
Battery Voltage	46 – 60 VDC (Lithium)
Battery Type	Lithium/Lead-acid
Inverter Output (Rated Power)	12KW
Surge Rating	36KW
Waveform	Pure sine wave/ same as input (bypass mode)
Nominal Output Voltage RMS	120/240Vac (195-255Vac)(optional)
Output Frequency	60Hz (58.3~61.7Hz)
Inverter Efficiency (Peak)	96.50%
Transfer Time	≤20ms Single /≤30ms Parallel
Solar Charger (Maximum PV Charge Current)	27A(Per MPPT)
Maximum PV Array Power	18000W(9000W per MPPT)
AC Input Voltage	120/240Vac
Max. Charging Current	70A
Protection Degree	IP20
Dimensions (W/H/D)	550/465/150 mm
Weight	21.5kg
Operating Environment (Temperature Range)	-10°C ~ 50°C
Warranty	5-year standard warranty

JA Solar JAM54D41 LB 450W N-Type Double Glass Bifacial Solar Panel	Details
Rated Power (as supplied)	450W
Brand	JA Solar
Model	JAM54D41 LB
Power Output Range	430W – 455W
Cell Technology	N-Type Bycium+ Mono-Crystalline
Module Type	Double Glass Bifacial Half-Cell (16BB)
Number of Cells	108 (6 × 18)
Maximum Module Efficiency	Up to 22.5%
Bifaciality Ratio	Approx. 80%
Power Tolerance	0 ~ +3%
Module Dimensions	1762 × 1134 × 30 mm
Module Weight	22 kg
Front Glass	1.6 mm Heat-Strengthened Glass
Rear Glass	1.6 mm Heat-Strengthened Glass
Frame	Anodized Aluminum Alloy (Black, 30 mm)
Junction Box	IP68 Rated with MC4-EVO2 Connectors
Maximum System Voltage	1500 V DC
Maximum Series Fuse	30 A
Operating Temperature	−40°C to +85°C
Temperature Coefficient (Pmax)	−0.29% / °C
Mechanical Load (Front)	5400 Pa
Mechanical Load (Rear)	2400 Pa
Product Warranty	12 Years
Performance Warranty	30-Year Linear Power Warranty (≤ 0.4% annual degradation)
Country of Origin	China

Common questions

Before you order.

If yours isn't here, ask an engineer. It costs nothing and it's the step most people skip.

Is the racking or mounting hardware included?

No. Rails, roof hooks, ground-mount posts and clamps depend on the roof or ground they go on, so no system ships with them. They are sold separately. The finder adds the right pack for your surface when it sizes a system, or ask us and we will match one to your roof.

Can I install it myself?

The equipment ships ready to connect, but the AC side, the grounding and any connection to the grid must be done by a licensed electrician. A grid-tied or hybrid system also needs a permit and your utility's interconnection approval before it is switched on. The wiring diagram and commissioning record we publish are for reference; they are not a stamped design, and a professional engineer's review is required where your jurisdiction calls for one.

Are the solar panels included?

Where the title names an array — “7.04 kW panels”, say — the panels are in the box and appear under What ships. A backup system whose title names no array, such as the Growatt whole-home and partial-home backup systems, is the inverter and battery only, and its listing says so. Panels for those are sold separately.

What is the difference between off-grid, grid-tie and hybrid?

An off-grid system has no utility connection: the battery carries the night and the generator input carries the dark days. A grid-tie system has no battery: it feeds your panel and the grid by day and goes dark in an outage. A hybrid system does both — it works with the grid and keeps a battery, and with its transfer switch it carries your essential circuits through an outage.

Which tax credits and incentives apply?

The 30% federal residential credit ended on 31 December 2025, and nothing on this page assumes it. Some states still run their own credits, sales-tax exemptions or generation payments; the savings estimate above lists the ones we know of for your state, and our tax credit guide explains what applies in 2026.

Can I charge from a generator?

Most off-grid inverters in the range have a generator input for charging on dark days; the specification table says whether this one does and at what current. A grid-tie inverter has no generator input. A hybrid system takes a generator through its transfer switch, if your electrician wires one in.

What if I'm not sure this is the right product?

Ask before you order. Send us what you need to run, or your pool or well figures, and an engineer will confirm the choice — it costs nothing. Or use the finder below, which sizes from what you actually run and shows its reasoning.

Not sure this is the right one? Tell the finder what you need to run and it will size it from stock, with the reasoning shown.

Size a system → Talk to an engineer
