24% off

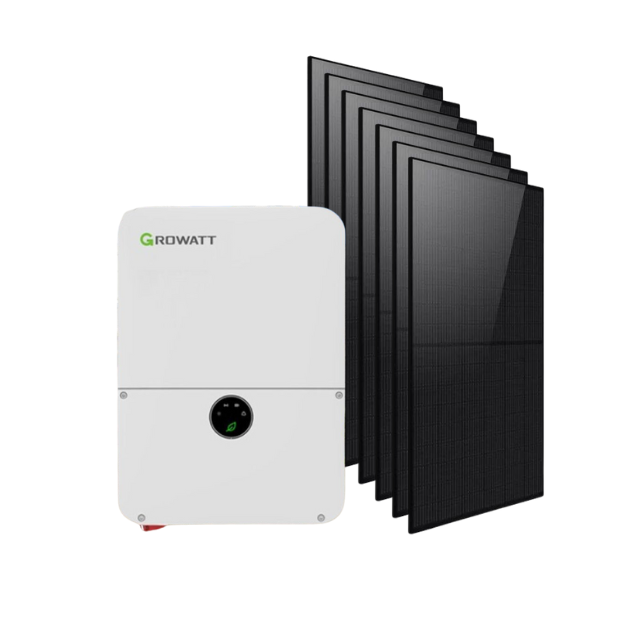

6 kW Grid-Tie Solar Panel Kit with 7000W Panels
$4,999.99
$6,599.99
Unit price /
Unavailable
Shipping calculated at checkout.
- Comprehensive Solution: Complete setup including inverter, solar panels, and installation gear.
- High-Performance Panels: 7000W total from ROCKSOLAR 440W Monocrystalline panels.
- Efficient Inverter: Growatt SPF MIN 6000TL-XH US for reliable power conversion.
- Durable Construction: Weather-resistant panels with rigid frames and anti-reflective glass.
- Safe and Reliable: Advanced BMS and protective inverter features ensure safety.
- Flexible Installation: Easy setup with pre-drilled holes and stackable battery design.
- Remote Management: WIFI/GPRS monitoring; WIFI Module included.
- Long Lifespan: Panels last over 30 years; 10-year warranty for the inverter.
- Environmental Benefit: Reduces carbon footprint with sustainable energy.
- Scalable System: Expandable with additional batteries or panels as needed.
- All-Weather Performance: Operates effectively under diverse conditions.
6 kW Grid-Tie Solar Panel Kit with 7000W Panels is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
6 kW Grid-Tie Solar Panel Kit with 7000W Panels
$4,999.99
$6,599.99
Unit price /
Unavailable
Description
Description
A comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt 6kW MIN 6000TL-XH-US Grid-Tie Inverter, and the high-performance 7000W Rigid Bifacial Solar Panels to provide an unrivaled off-grid experience.
Product Features

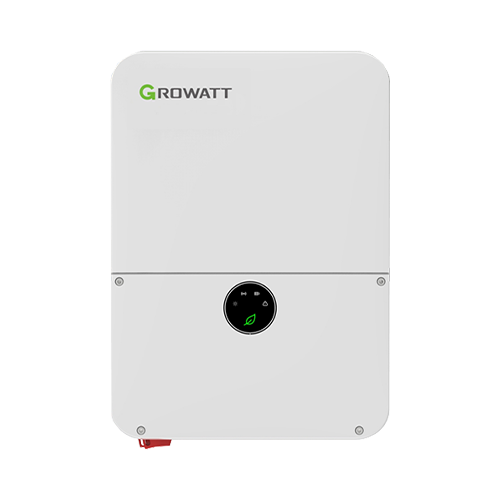

Growatt 6kW MIN 6000TL-XH-US Grid-Tie Inverter:
- Battery Compatibility: Ready for both DC Coupled and AC Coupled systems, compatible with Growatt ARO/APX HV and LG Prime(Gen3) batteries.
- High Yields: With a DC/AC ratio up to 2.0, 3 MPP trackers, and a maximum efficiency of 98.4%, it ensures superior energy conversion.
- Backup and Dark Start: Offers backup power capabilities and can start without grid power, ensuring your home is never without energy.
- Comprehensive Protection: Supports Rapid Shutdown (RSD) and Arc Fault Circuit Interrupter (AFCI) for enhanced safety
- Versatile Energy Management: Features modes like Self-consumption, Zero Export, TOU, and Off-grid to optimize energy use and savings.
- Standards Compliant: Meets UL1741SA/SB, CA Rule 21, and HECO standards, ensuring broad acceptance and regulatory compliance.
- Easy Monitoring: The WiFi module provides plug-and-play online monitoring through mobile or web, enabling easy management of your power system.
- Leading Functions: Offers whole home backup and dark start operation for a comprehensive energy solution.
- Installation Flexibility: Designed for both indoor and outdoor, wall-mounted installations, accommodating a variety of residential setups.
- Trusted Manufacturer: Growatt, a global leader in solar technology, provides innovative products that maximize energy efficiency and savings.

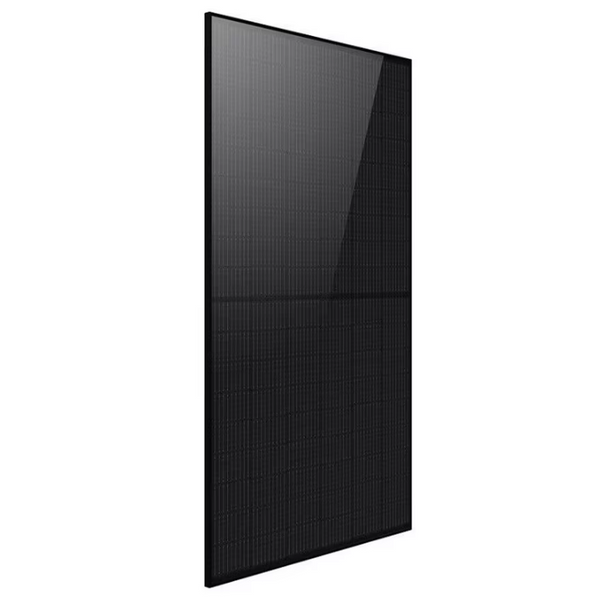

ROCKSOLAR 440W Monocrystalline Bifacial Solar Panel (x16):
- High-efficiency monocrystalline cells for superior performance
- 440W power output per panel with a total array power of 7040W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 25 years of service life with a 10-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
SPECIFICATIONS
SPECIFICATIONS
| Inverter Specification | |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tied/ Battery Storage |
| AC Power | 6.0kW |
| Max PV Input Power | 12 kW |
| MPP Trackers | 3 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.4% |
| Compatible Battery | Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV INPUT - Max Input Voltage | 600V |
| PV INPUT - Full load Voltage Range | 210~500V |
| PV INPUT - Max Input Current per MPPT | 13.5A |
| PV INPUT - Max Short-circuit Current per MPPT | 16.9A |
| Battery Connection - Battery Voltage Range | 360~550V |
| Battery Connection - Rated Battery Voltage | 400V |
| Battery Connection - I/O DC Current | 14.3A |
| Battery Connection - I/O DC Power | 5.0kW |
| AC OUTPUT (GRID) - Nominal Power | 6.0kW |
| AC OUTPUT (GRID) - Max Output Current | 25A |
| AC OUTPUT (GRID) - Nominal AC Voltage | 208/240V |
| GENERAL DATA - Dimensions(W*H*D) | 15.75*22.4*6.98 inch (400*569*170.5mm) |
| GENERAL DATA - Weight | 32.3lbs (14.65kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
| Solar Panel Specification | |
|---|---|
| Panel Type | Monocrystalline Bifacial |
| Power Output | 440W |
| System Voltage | 32V |
| Cell Efficiency | 20-22% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mmX30mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
