ROCKSOLAR 2000W 24V Off-Grid Solar System

$1,999.99 $4,199.99

Questions or Bulk Orders?

Pickup currently unavailable at USA Fulfillment Center

Talk to Real Experts Anytime

Lifetime tech support from our in-house specialists

Hassle Free Warranty

Effortless Warranty for Your Ease.

Unbeatable Value, Guaranteed

Find it cheaper elsewhere? We'll match it.

Over 25 years of
solar industry experience

Trusted by
10,000+ American
customers

Hassle-free 30-day
return policy

Industry-Leading
Warranty

About this product

What it is, and what it is for

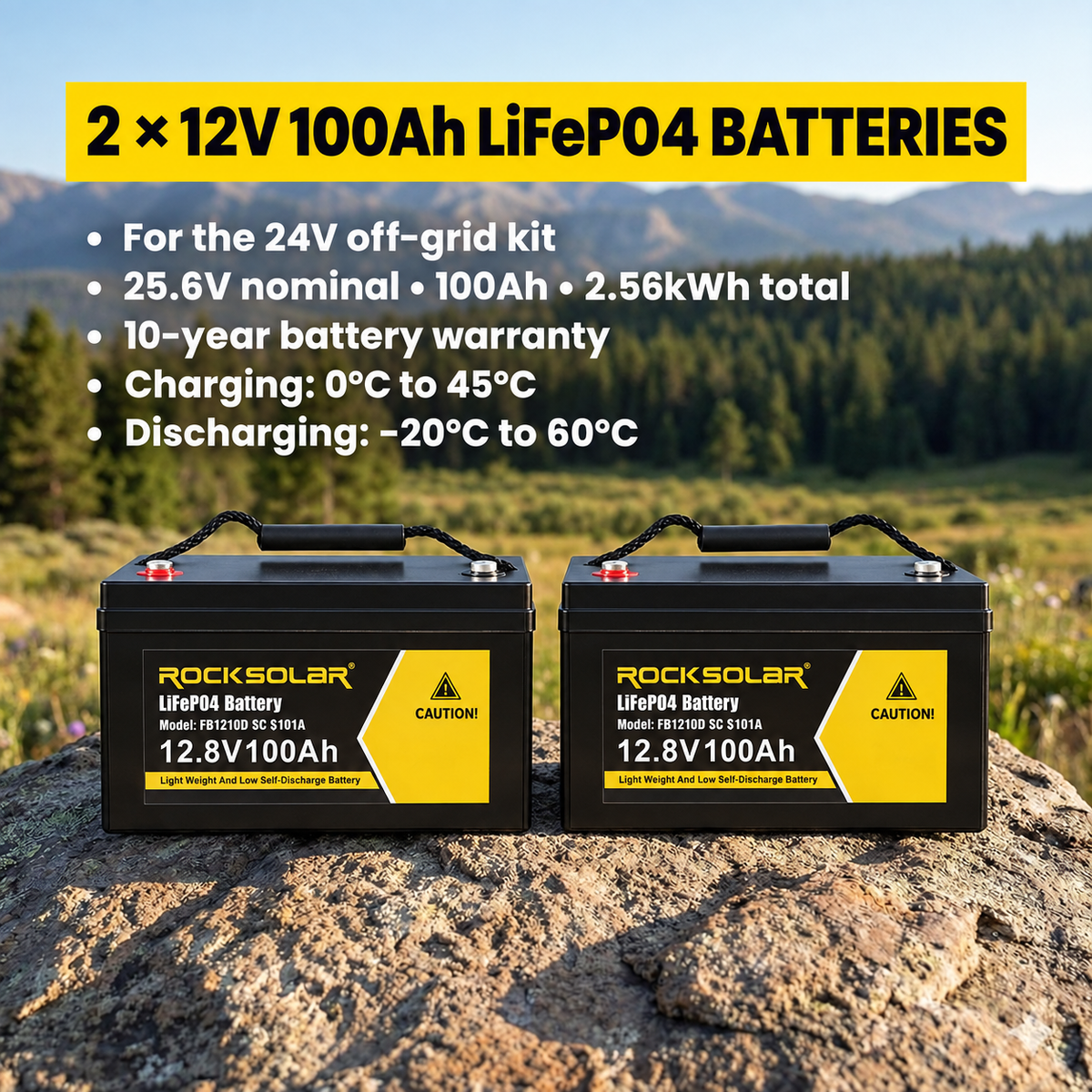

2 x ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Batteries with BMS:

Two 12V-class (12.8V nominal) 100Ah batteries for a 24V system: 25.6V nominal, 100Ah, 2560Wh total when connected in series. Follow the battery manufacturer's installation instructions.
6000+ service cycles, as listed for the ROCKSOLAR 12V 100Ah battery
Steady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteries
Utilizes advanced LiFePO4 Battery Technology for dependable deep cycling
Smart Battery Management System for safety and longevity
Battery weight: 27 lb each; 54 lb for the pair
Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.
Operating temperature range for charging: 0°C to 45°C, discharging: -20°C to 60°C. BMS auto-shuts off the battery outside the working temperature.
Warranty: 10-year warranty and 10+ year service life

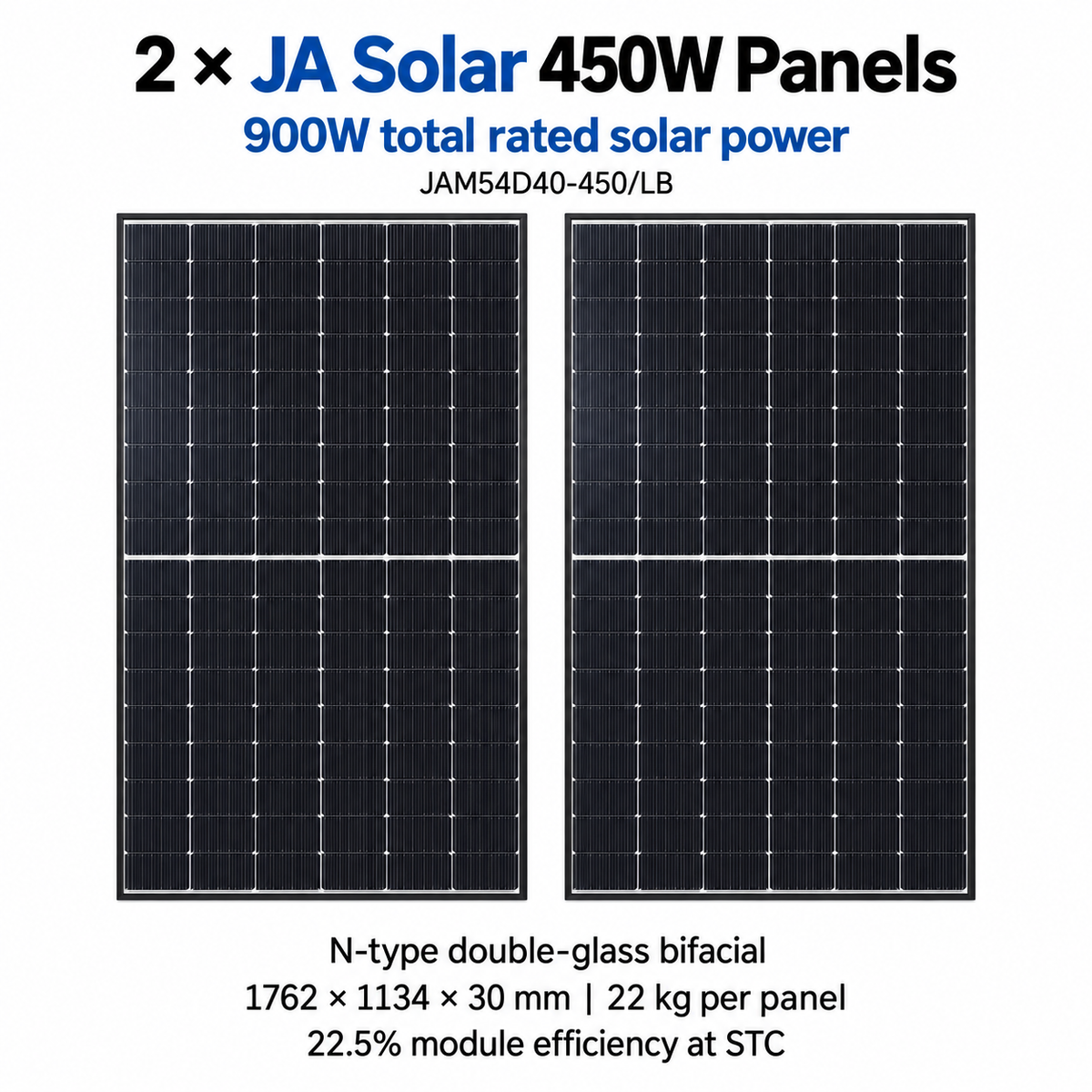

2 x JA Solar 450W Panels (900W Total)

Model: JAM54D40-450/LB, black-frame n-type double-glass bifacial module.
Rated front-side power: 450W per panel at STC; 900W total for two panels. Actual output depends on sunlight, temperature, installation and rear-side exposure.
Module efficiency: 22.5% at STC.
Dimensions per panel: 1762 x 1134 x 30 mm; weight: 22 kg.
Manufacturer warranty stated in the supplied datasheet: 12-year product warranty and 30-year linear power output warranty, subject to JA Solar warranty terms.

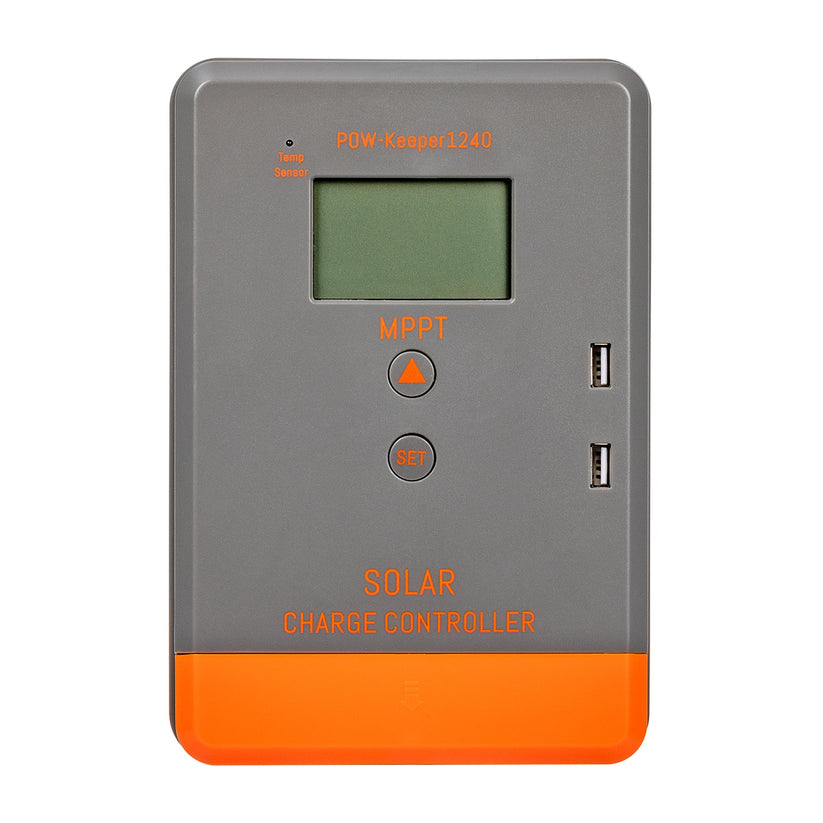

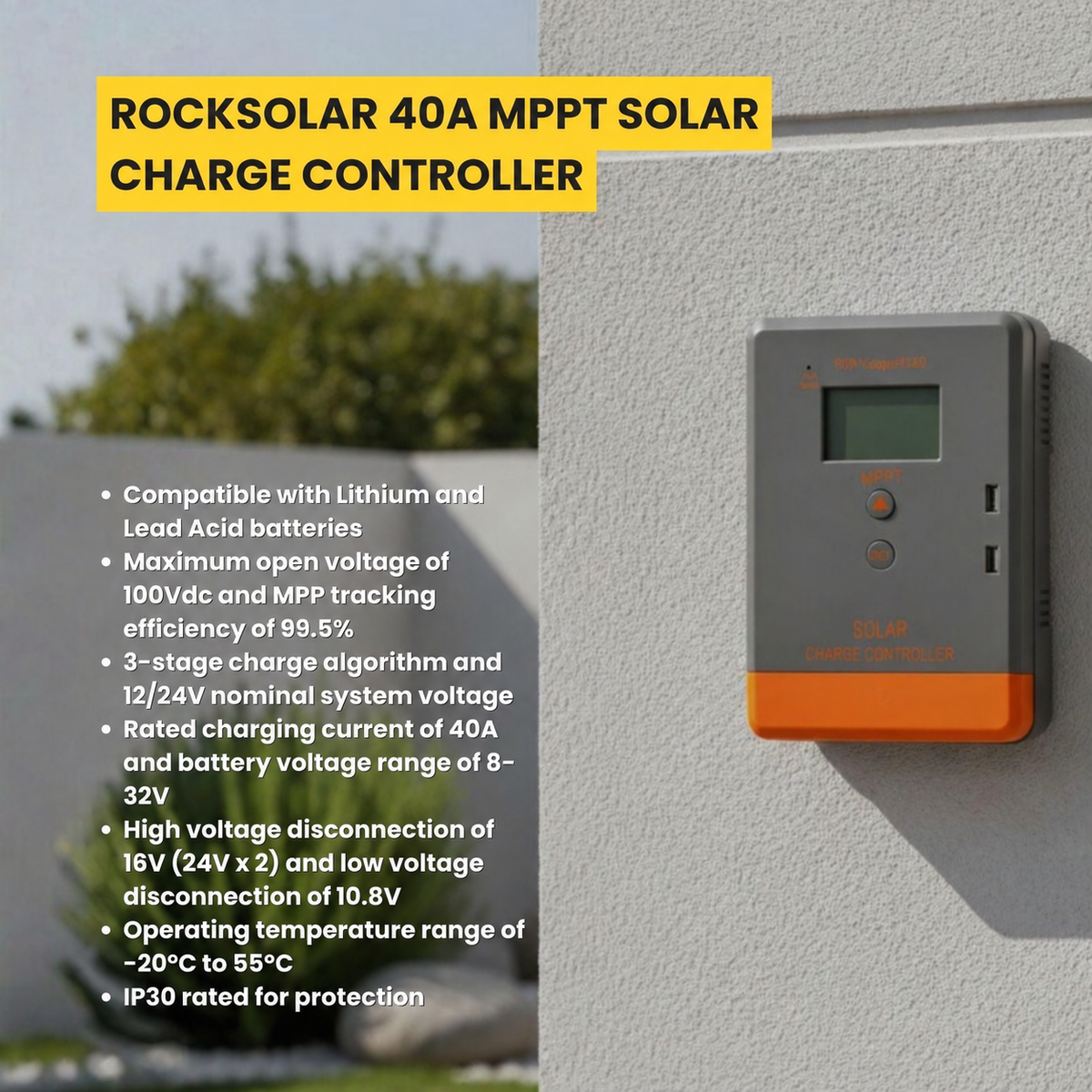

ROCKSOLAR 40A MPPT Solar Charge Controller:

40A MPPT Solar Charge Controller
Compatible with Lithium and Lead Acid batteries
Maximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%
3-stage charge algorithm and 12/24V nominal system voltage
Rated charging current of 40A and battery voltage range of 8-32V
High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
Operating temperature range of -20°C to 55°C
IP30 rated for protection

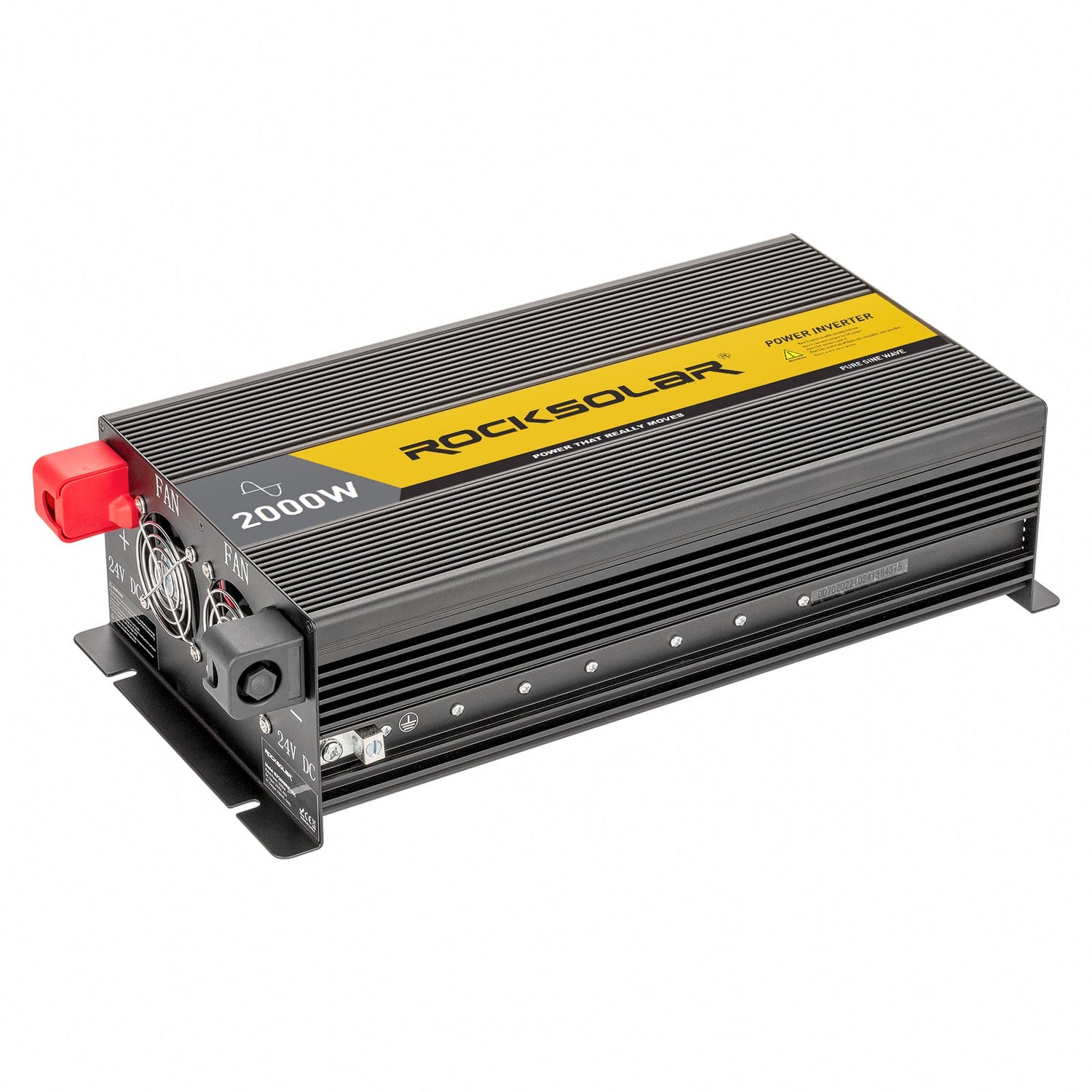

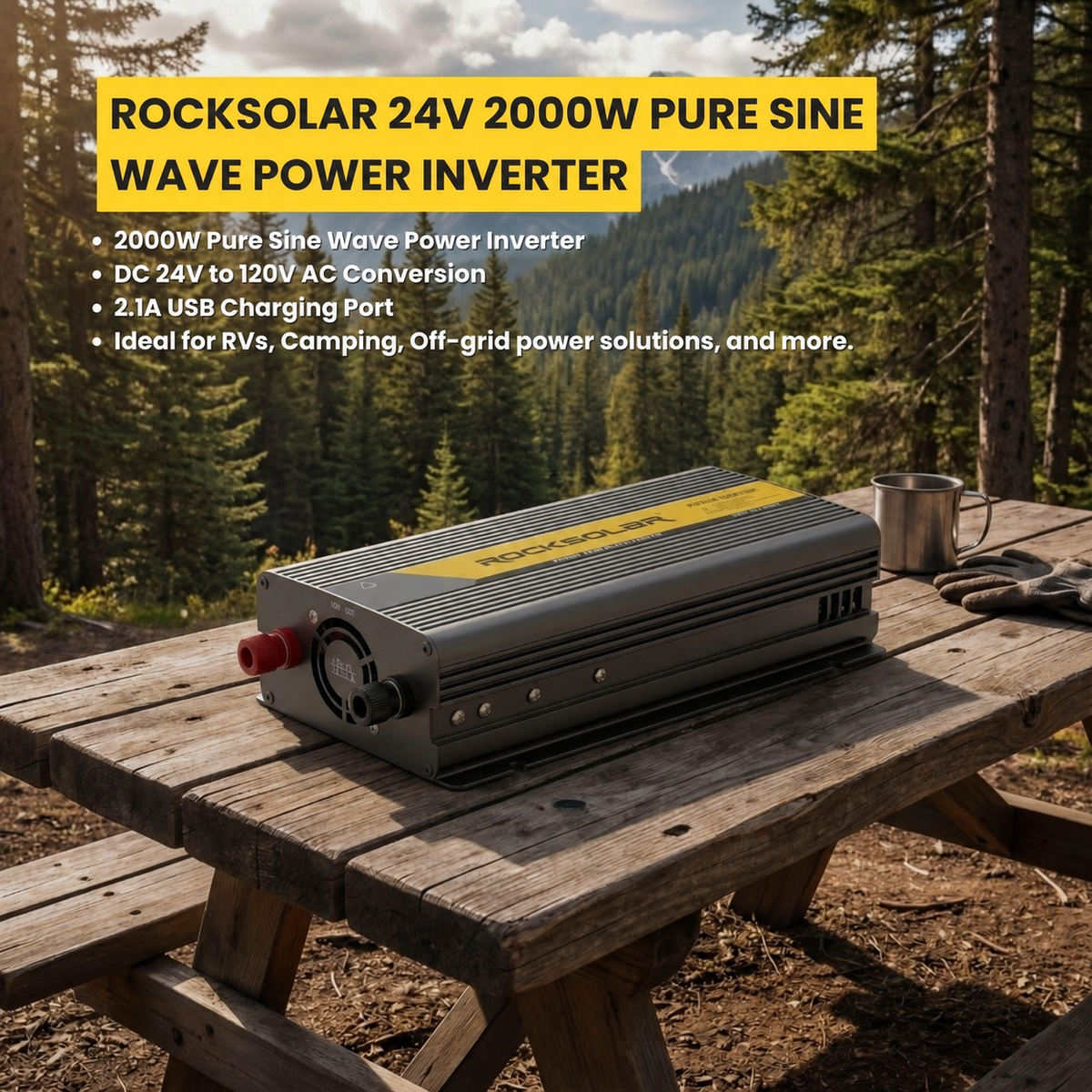

ROCKSOLAR 24V 2000W Pure Sine Wave Power Inverter:

2000W Pure Sine Wave Power Inverter
DC 24V to 120V AC Conversion
2.1A USB Charging Port
Ideal for RVs, Camping, Off-grid power solutions, and more.

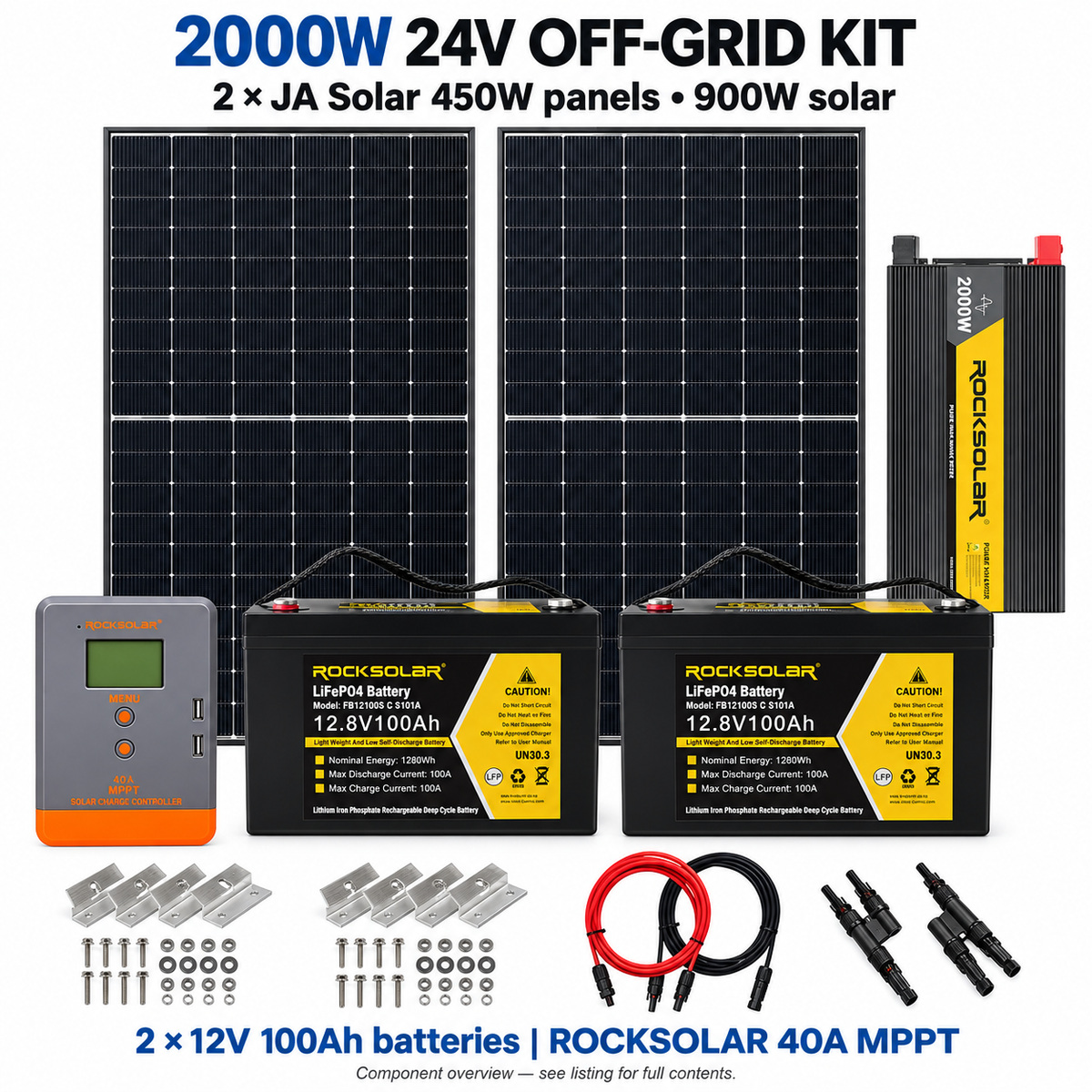

2 x 12V 100Ah Deep Cycle LiFePO4 Batteries
2 x JA Solar 450W JAM54D40-450/LB Solar Panels (900W total)
1 x 24V 2000W Pure Sine Wave Power Inverter
1 x 40A MPPT Solar Charge Controller

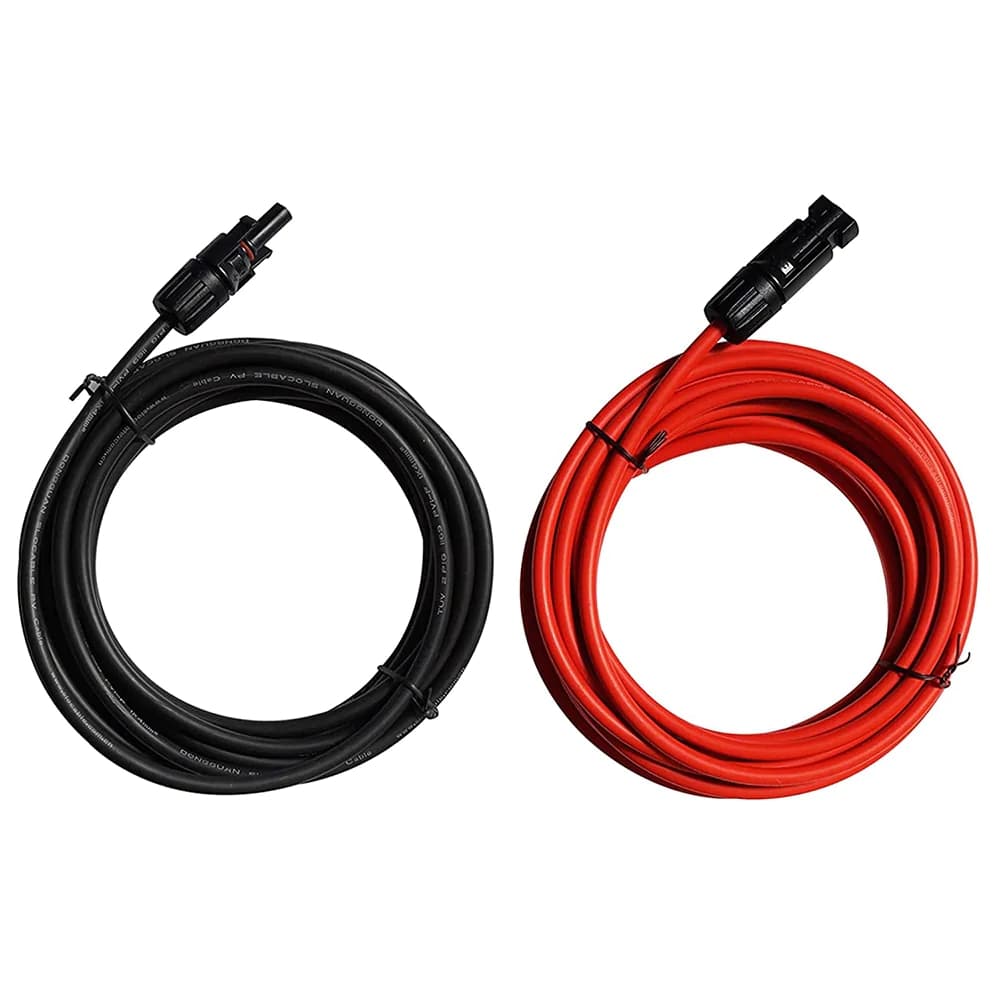

1 x 10 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black
1 X M8 cable

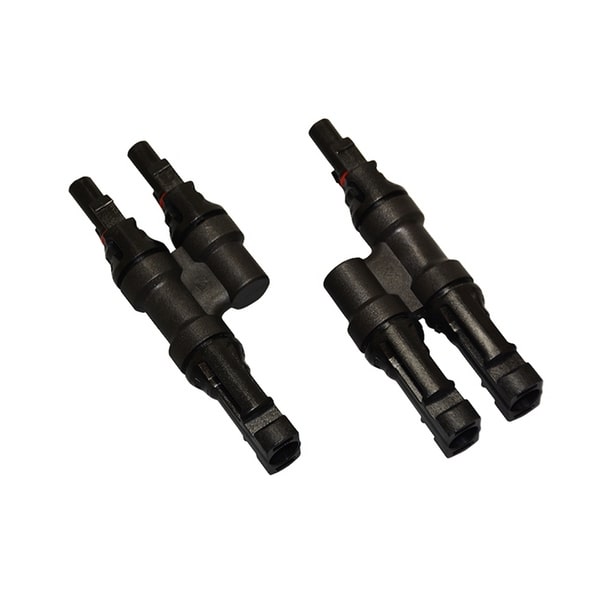

1 x Y Connector

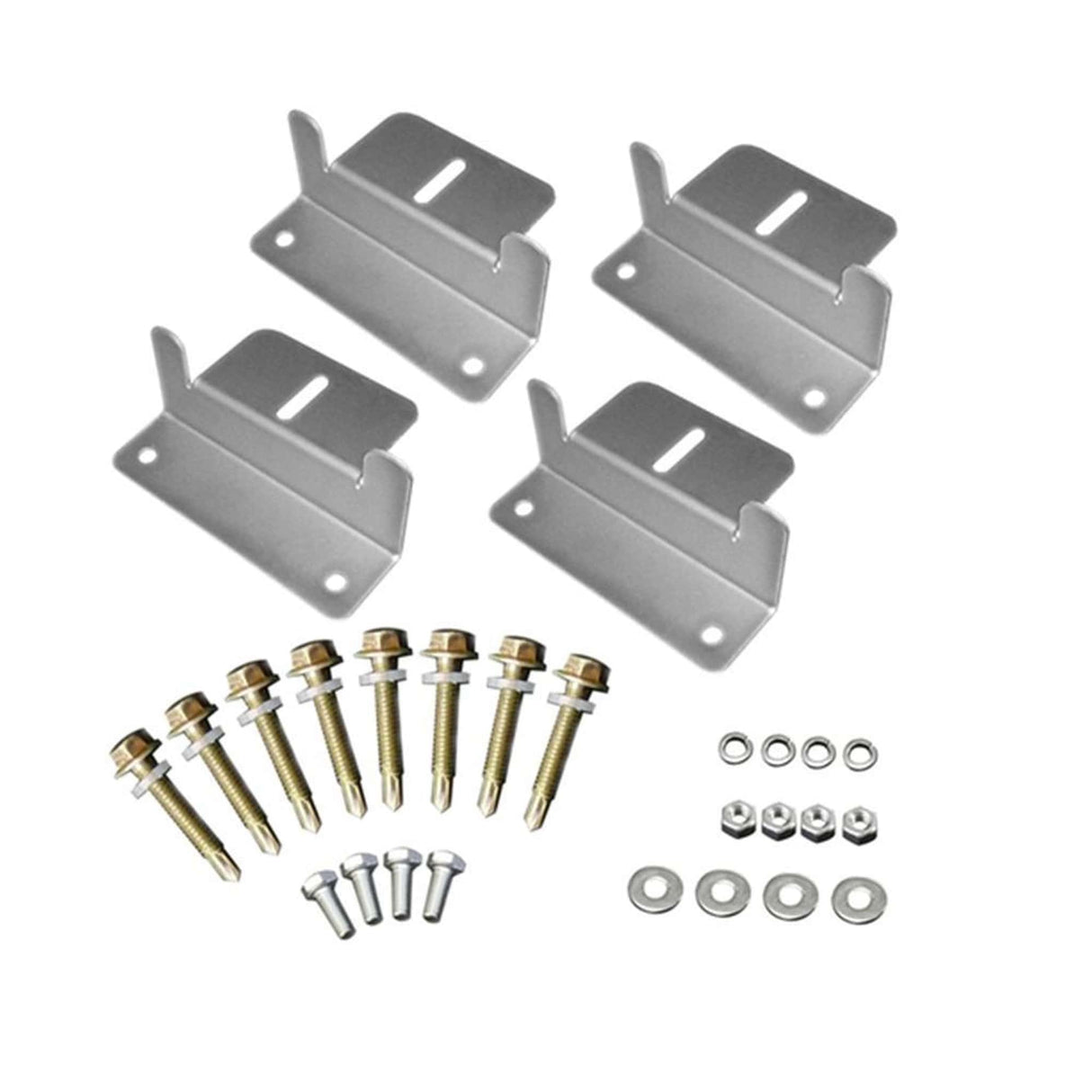

2 x Z-Bracket Mount System (Set of 4)
1 x 2 String Waterproof Disconnect switch with DC breaker and Surge protection
1 x User Manual

What ships

3 components

Each one is a product we sell on its own, so you can read its full listing, and replace or add to it later.

Full specification

Every number, by component.

The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.

Battery Bank: 2 x ROCKSOLAR 12V 100Ah LiFePO4 Batteries

Quantity	2 batteries
Capacity per battery	100Ah
Nominal voltage per battery	12.8V (12V class)
Bank configuration	Series connection for the 24V system; follow the manufacturer's installation instructions
Bank nominal voltage	25.6V
Bank capacity	100Ah (series connection does not add Ah capacity)
Total nominal energy	2560Wh (2 x 12.8V x 100Ah)
Weight	27 lb each; 54 lb total
Charge temperature	0°C to 45°C
Discharge temperature	-20°C to 60°C
Battery warranty	10 years

JA Solar 450W Solar Panels

Quantity	2 panels
Model	JA Solar JAM54D40-450/LB
Construction	Black-frame n-type double-glass bifacial
Rated maximum power at STC (per panel)	450W
Total front-side array rated power at STC	900W
Open-circuit voltage (Voc, per panel at STC)	39.30V
Maximum power voltage (Vmp, per panel at STC)	32.82V
Short-circuit current (Isc, per panel at STC)	14.48A
Maximum power current (Imp, per panel at STC)	13.71A
Module efficiency at STC	22.5%
Dimensions per panel	1762 x 1134 x 30 mm
Weight per panel	22 kg
Cells	108 (6 x 18)
Front glass / back glass	1.6 mm / 1.6 mm
Manufacturer product warranty	12 years, subject to JA Solar warranty terms
Manufacturer linear power output warranty	30 years, subject to JA Solar warranty terms
Rating conditions	STC: 1000 W/m² irradiance, 25°C cell temperature, AM1.5G. Electrical ratings above are per panel, not array wiring values.

40A MPPT Solar Charge Controller Details

Max Open Voltage of PV Module	100Vdc
MPP Tracking Efficiency	99.50%
Light Control Voltage	5V
Charge Algorithm	3 Stage
Battery Type	Lithium and Lead Acid Battery
Nominal System Voltage	12/24V
Rated Charging Current	40A
Battery Voltage Range	8~32V
High Voltage Disconnection	16V (24V x 2)
Duration for absorption charging	2 hours
Charge Loop Voltage Drop	≤0.29V
Self-consumption	≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage	AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging voltage	AGM: 14.4V; GEL: 14.2; FLd: 14.6V
Floating Charging voltage	AGM/ GEL/ FLd: 13.8V
Low Voltage re-connection (LVR)	AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD)	AGM/ GEL/ FLd: 10.8V
Operating Temperature Range	-20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range	-20℃~70℃
Humidity Range	≤95% No condensation
Protection Class	IP30
Dimension	12317848 mm
Installation Hole	108*120 ∅5 mm
Warranty	1 Year

24V 2000W Pure Sine Wave Power Inverter Details

Rated Power	2000W
AC Voltage	120V
Frequency	60HZ
Resistive Load Continuous Output Power	2000W
Inductive Load Continuous Output Power	1500W The pump can start normally (beyond which protection may be possible without damaging the inverter)
Capacitive Load Continuous Output Power	940±30W，PF：0.7 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter)
Waveform	Pure Sine Wave
Waveform Distortion（THD)	≤5%
Voltage Range	18V–32Vdc
Battery Voltage	24Vdc
Shutdown Mode Static Current	1mA
Maximum Efficiency	90%
Over Temperature	Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output
Output Short Circuit	Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S
Overload	Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
USB Output Voltage	5V
USB Output Current	2.1A
Working Temperature	-20～40℃
Operating Humidity	10～90%RH
Storage Temperature, Humidity	-30℃～70℃,10～95%RH
Weight	Net weight: 5.01 kg
Size	420.4208.9110 mm (LWH)
Warranty	1 Year
