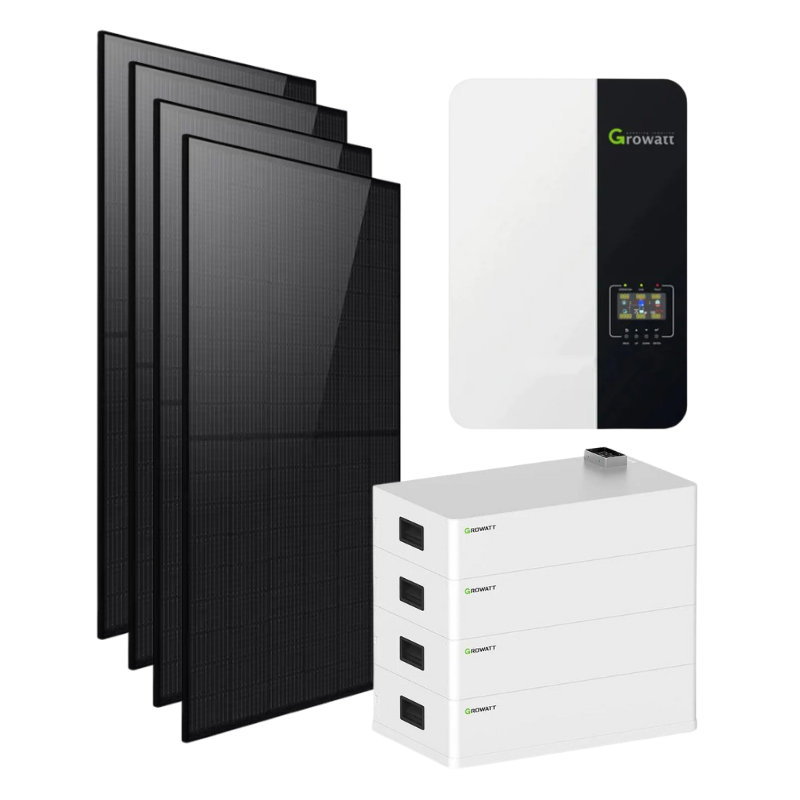

3.5 kW Off-Grid Solar System (5kW Energy Storage with 3.5kW Inverter + 1600W Solar Array)

$4,899.99 ~~$7,999.99~~

Shipping calculated at checkout.

Comprehensive Solution: Inverter, battery, solar panels, and all necessary equipment.
High-Capacity Storage: Expandable Growatt 5kW battery up to 400kWh.
High-Performance Panels: 1600W total from ROCKSOLAR 400W panels.
Efficient Inverter: Growatt Off-Grid Inverter for reliable power.
Durable Construction: Weather-resistant panels with aluminum frames.
Safe and Reliable: Advanced BMS and protective inverter features.
Flexible Installation: Easy setup with pre-drilled holes and stackable battery.
Remote Management: WIFI/GPRS monitoring included.
Long Lifespan: 25+ years for panels, 5-year battery and inverter warranty.
Environmental Benefit: Reduce carbon footprint with solar power.
Scalable System: Expandable with more batteries or panels.
All-Weather Performance: Effective under various conditions.

Free Shipping

Orders Over $100? Shipping's On Us!

Hassle Free Warranty

Effortless Warranty for Your Ease.

Lifetime Customer Support

Endless Support, Because You Matter.

Description

Introducing the Ultimate Home Solar Storage Kit, a comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US, the reliability of the Growatt AXE 5.0L-C1 5kW Battery, and the high-performance 1600W Rigid Solar Panels to provide an unrivaled off-grid experience.

Engineered for seamless integration, the system ensures that your home can run independently of the grid, whether as a primary power source or as a backup during outages. It's an ideal setup for environmentally conscious homeowners looking to reduce their carbon footprint and harness the power of the sun.

Product Features

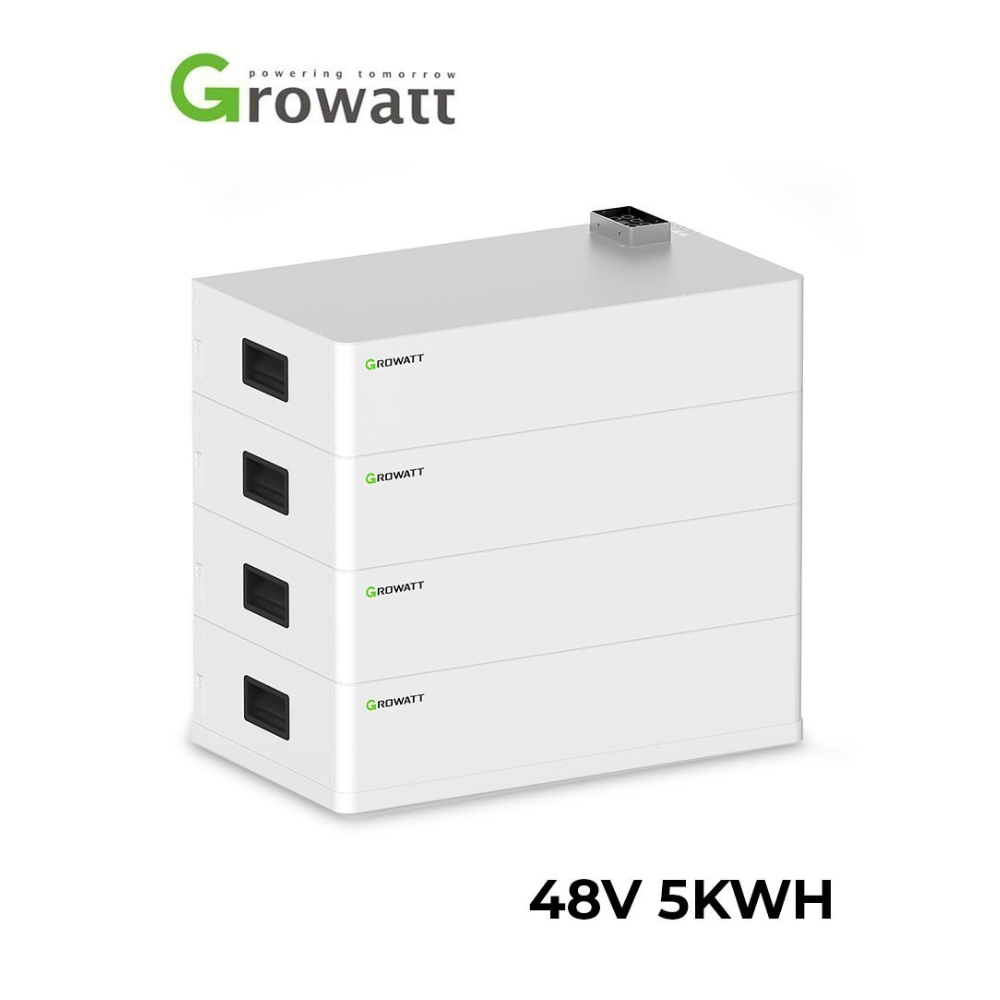

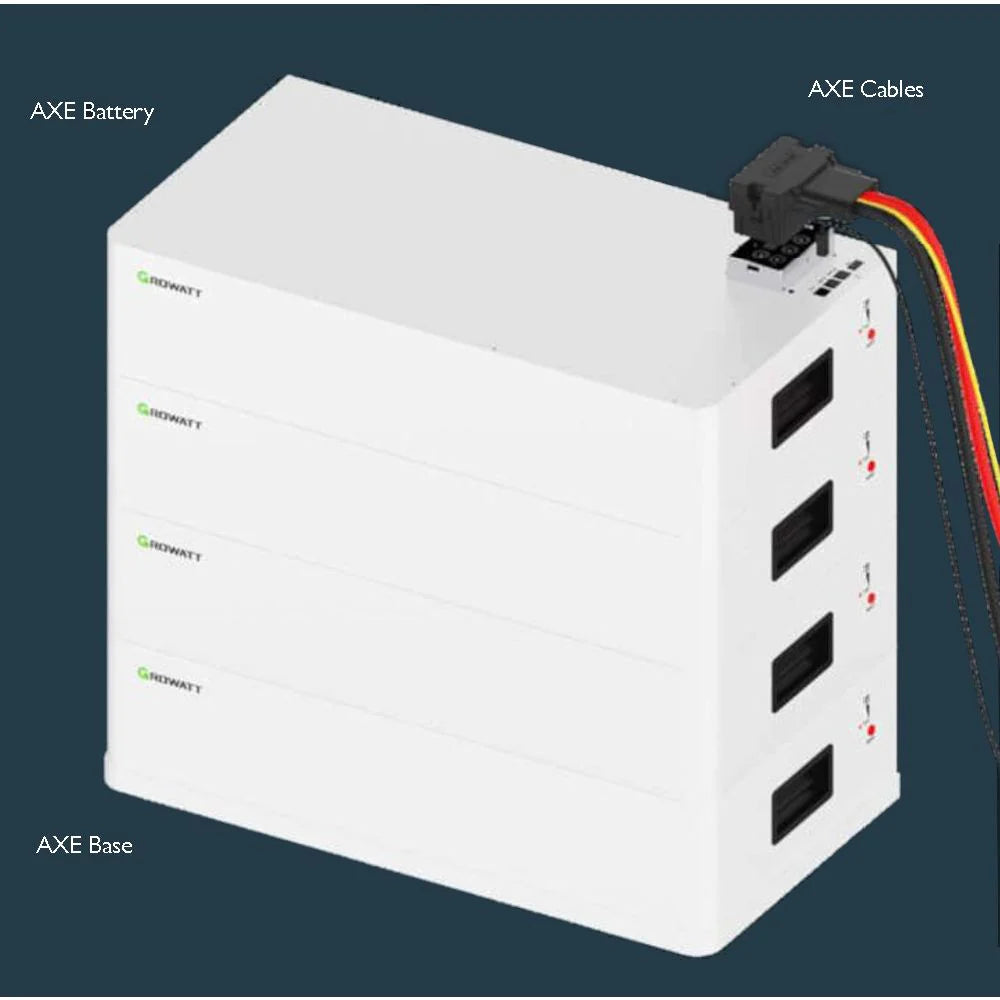

Growatt AXE 5.0L-C1 5kW Battery:

Modular 5kWh capacity, expandable in parallel for up to 400kWh
Cobalt-free LiFePO4 battery cells for safety and longevity

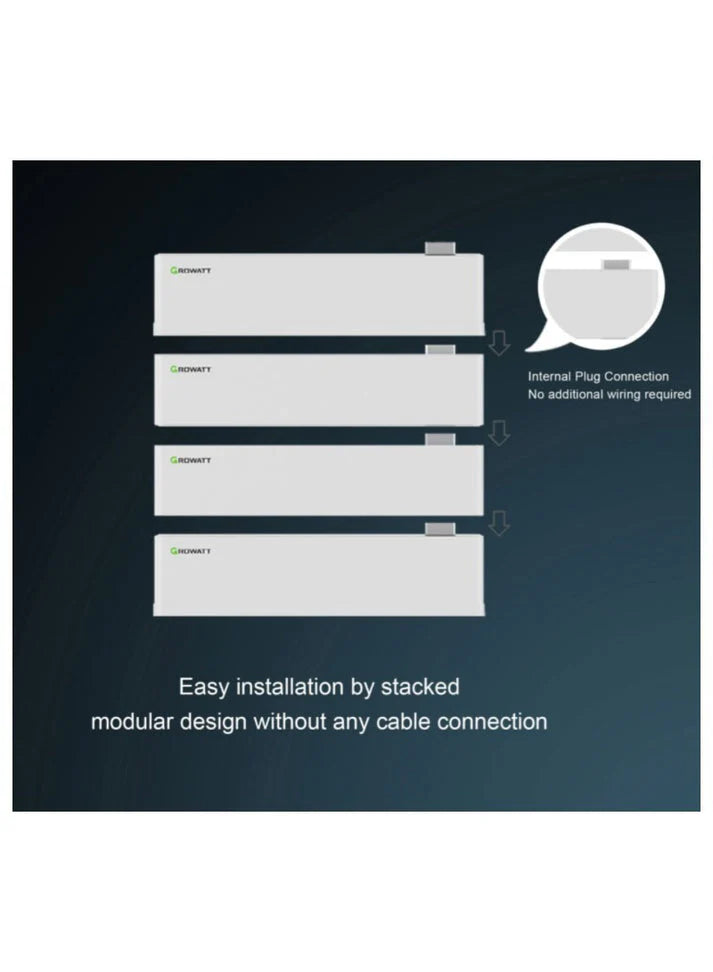

Quick, cable-free stacking installation
Remote management for firmware updates and diagnostics via WiFi or GRPS
Integrated BMS for real-time monitoring and protection
10-year warranty ensuring peace of mind

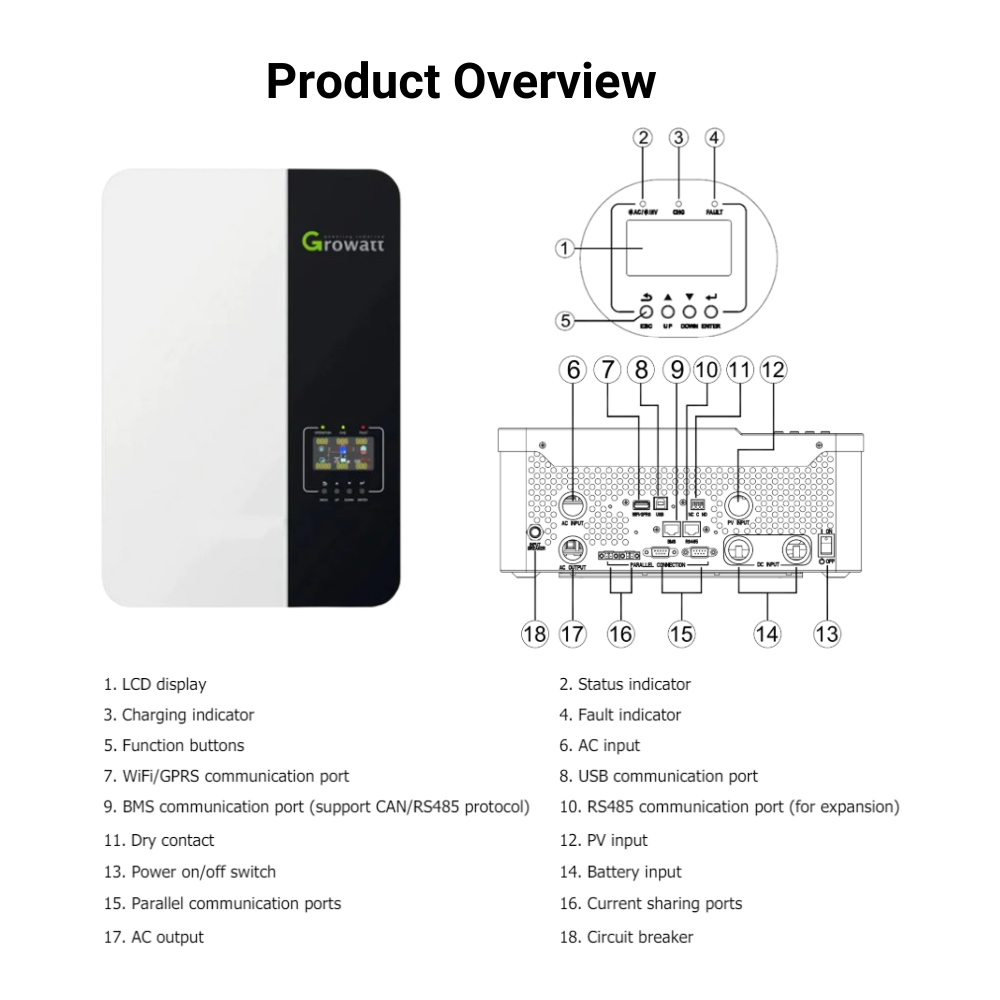

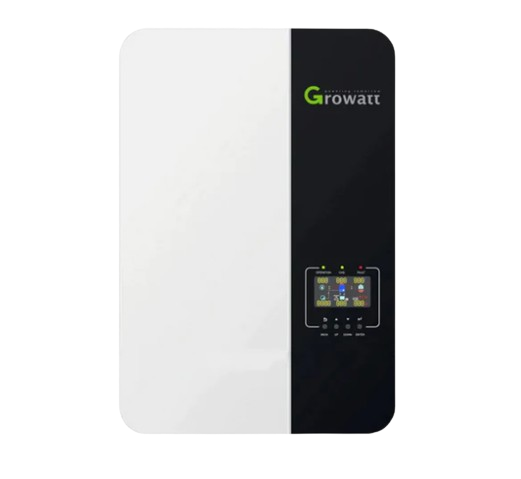

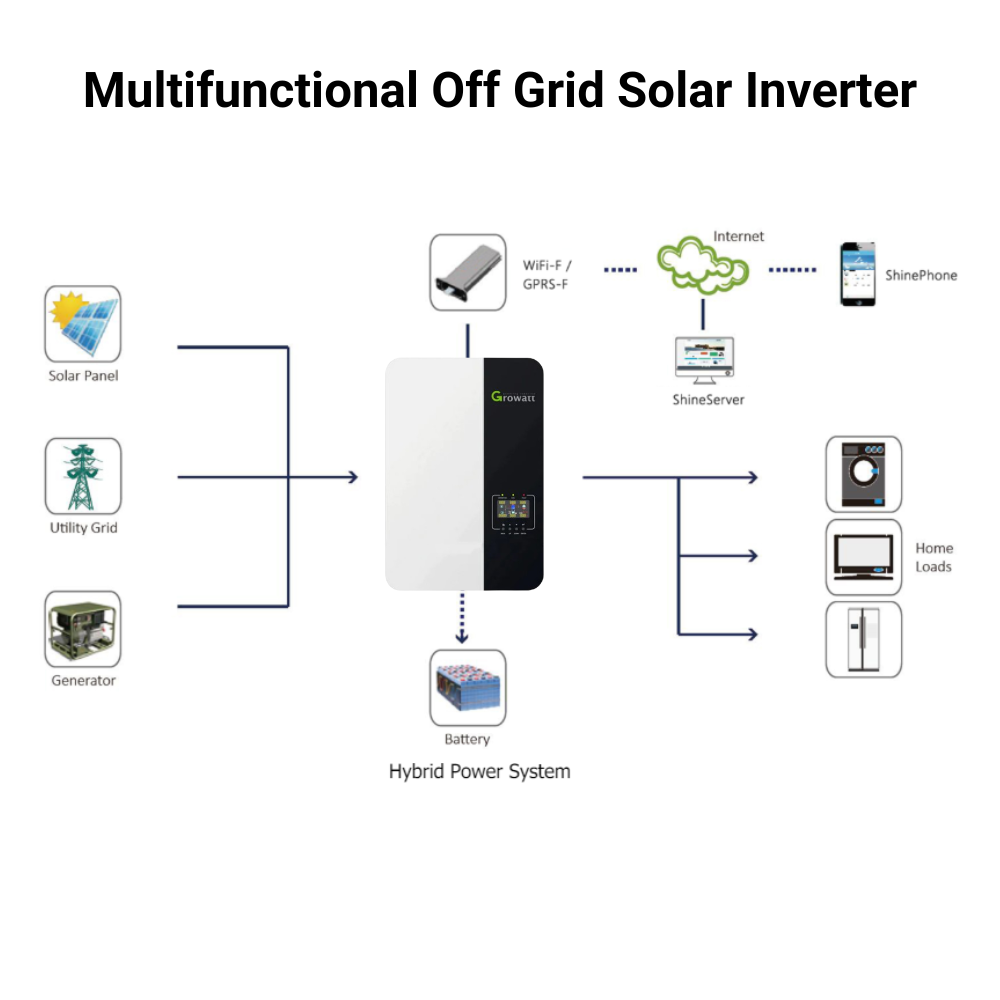

Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US:

Highly versatile with 3500W rated power
Integrated MPPT charge controller for maximum solar efficiency

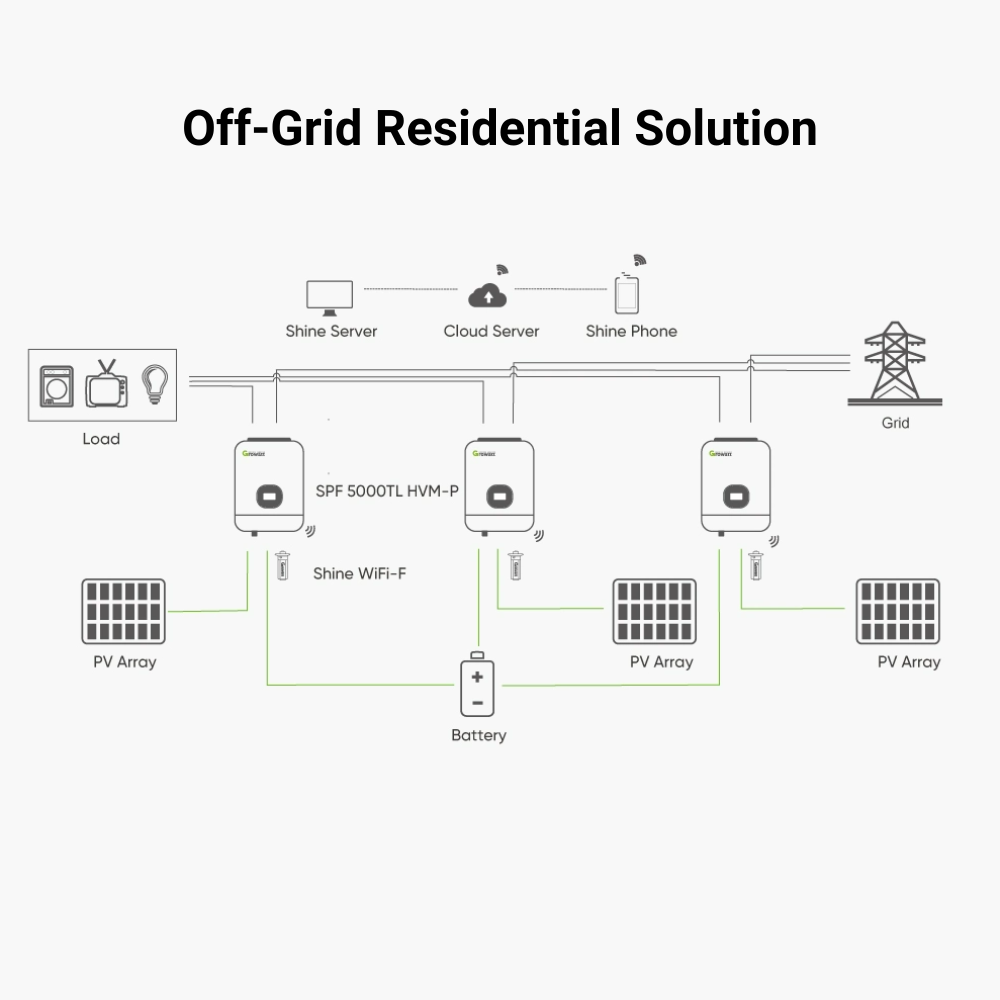

Supports parallel operation up to 20kW and Split phase 120/240Vac output with two in parrallel.
Flexible scheduling for inverter charging and discharging
Configurable grid or solar input priority and Generator Connection ready
WIFI/GPRS remote monitoring (WiFi Module included)

ROCKSOLAR 400W 12V Rigid Monocrystalline Solar Panel (x4):

High-efficiency monocrystalline cells for superior performance
400W power output per panel with a total array power of 1600W
Durable aluminum frame and anti-reflective glass for weather resistance
Easy installation with pre-drilled mounting holes
Bypass diodes to minimize shading impact on performance
Over 25 years of service life with a 10-year manufacturer warranty
Eco-friendly power generation to reduce carbon footprint

With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy the assurance of a reliable power supply. Experience the combined benefits of modern solar technology and battery storage in one seamless package.

SPECIFICATIONS

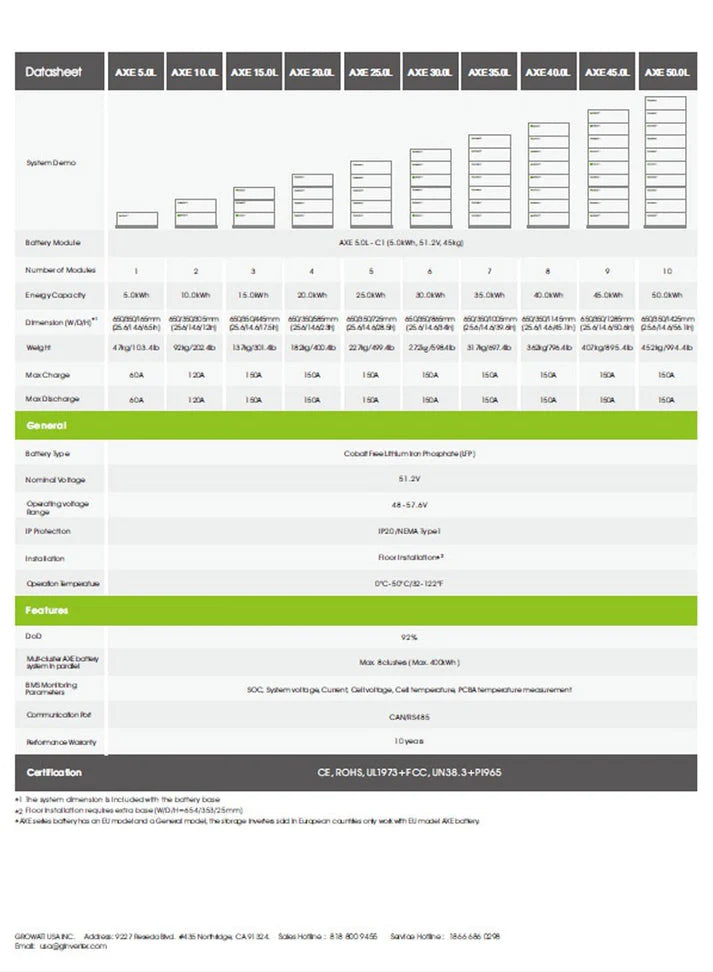

Growatt AXE 5.0L-C1 5kW Battery	Details
Model	Growatt AXE 5.0L-C1
Energy Capacity	5.0kWh
Max Charge/Discharge Power	3kW
Max Charge/Discharge Current	60A
Dimensions	650 x 350 x 165mm (W x D x H)
Weight	42kg
Nominal Voltage	51.2V
Warranty	5 years
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Operating Voltage Range	48 - 57.6V
Installation	Floor installation
Operation Temperature	0°C-50°C/32-122°F
DoD	92%
Parallel Capability	Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh)
Communication Port	CAN/RS485
Performance Warranty	10 years
Certification	CE, ROHS, UL1973+FCC, UN38.3 + IP65

Growatt Off-Grid Storage Inverter SPF 3000~3500TL LVM-US	Details
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
Inverter Output	Rated Power: 3500VA 3500W Parallel Capability: Yes, 6 units maximum AC Voltage Regulation (Battery Mode): 100Vac/110Vac/120Vac @ 50/60Hz Surge Power: 6000VA Efficiency (Peak): 90% Waveform: Pure Sine Wave Transfer Time: 10ms typical, 20ms max
Solar Charger	Maximum PV Array Power: 4000W MPPT Range @ Operating Voltage: 120VDC – 225VDC Maximum PV Array Open Circuit Voltage: 280VDC Maximum Solar Charge Current: 80A
AC Charger	Charge Current: 40A AC Input Voltage: 120VAC Selectable Voltage Range: 95-140VAC (For Personal Computers); 65-140VAC (For Home Appliances) Frequency Range: 50Hz/60Hz (Auto sensing)
Physical	Protection Degree: IP20/NEMA Type1 Dimension (W/H/D): 330/485/135mm Net Weight: 12kg
Operating Environment	Humidity: 5% to 95% Relative Humidity (Non-condensing) Operating Temperature: 0°C - 50°C (32°F - 122°F) Storage Temperature: -15°C - 60°C (-5°F - 140°F)
Warranty	2 Years

400W Rigid Solar Panel Specification	Details
Panel Type	Monocrystalline
Power Output	400W
System Voltage	12V
Cell Efficiency	20-22%
Frame Material	Aluminum
Dimensions	1480mm x 670mm
Weight	approx. 25-30 lbs
Operating Temperature	-40°C to +85°C
Waterproof Rating	IP65
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 years

INCLUDES

PDF DOWNLOADS

User Manual 2
