ROCKSOLAR 2000W 24V Off-Grid Solar System
solar industry experience
10,000+ American
customers
return policy
Warranty
What it is, and what it is for

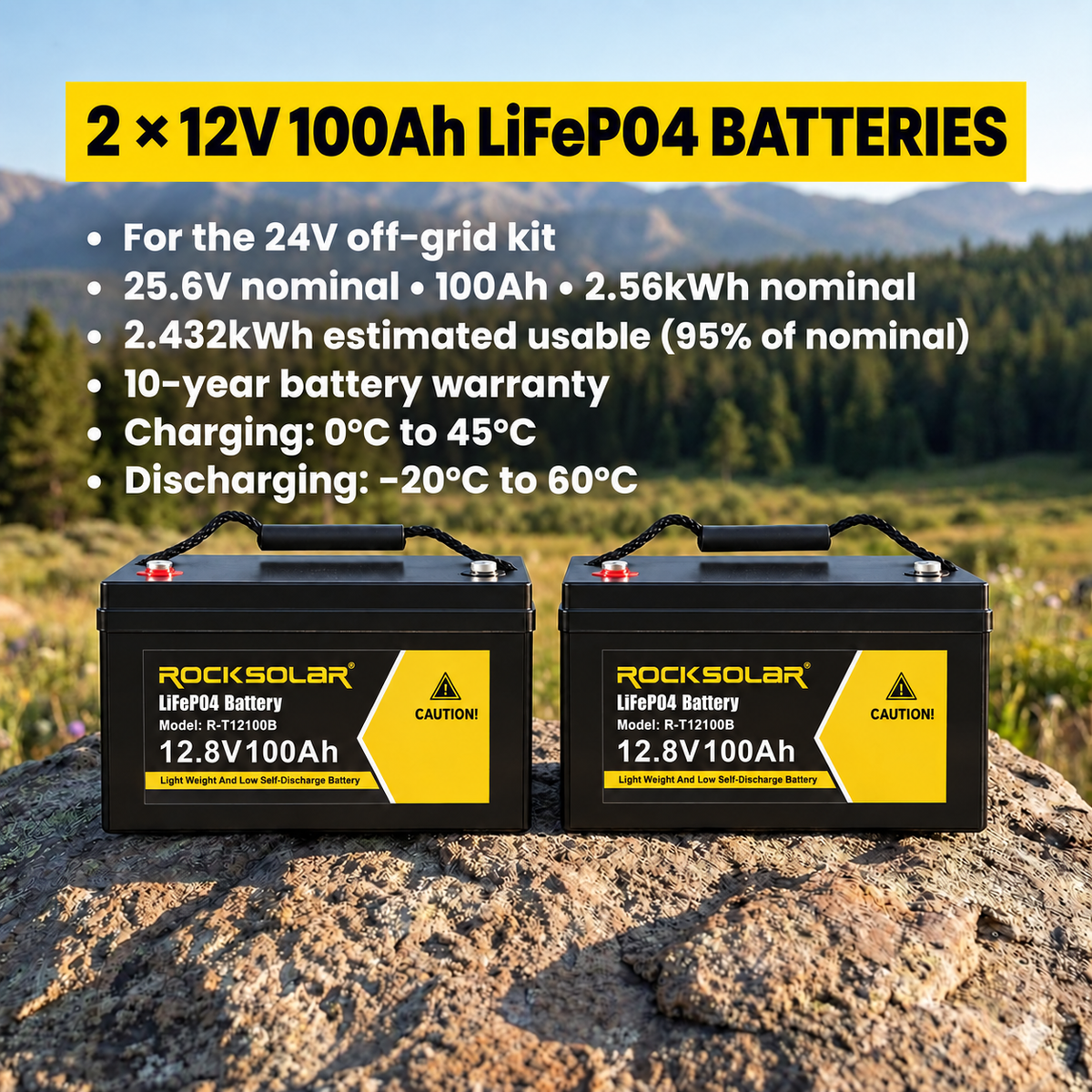

2 × ROCKSOLAR R-T12100B 12.8V 100Ah LiFePO4 Batteries
- Connected in series: 25.6V nominal, 100Ah (24V-class system), with 2.56 kWh nominal battery energy. Follow the manufacturer’s installation instructions.
- Cycle life: at least 6,000 cycles under manufacturer test conditions: 25 ± 2°C, normal charging and 0.2C discharge at 80% depth of discharge, until capacity reaches 80% of its initial value. Actual cycle life varies.
- Weight: approximately 12 kg (26.5 lb) per battery, without accessories; approximately 24 kg (52.9 lb) for the pair.
- Built-in BMS supports battery protection but does not replace correct charging settings, wiring, external protection or operation within specified limits.
- Charge only from 0°C to 45°C; discharge from -20°C to 60°C. Do not charge below 0°C or rely on automatic protection as permission to operate outside these limits.
- Battery warranty: 10 years. Warranty duration is not a guaranteed service life.
Nominal and Estimated Usable Battery Energy
Nominal battery energy: 2.56 kWh. Estimated usable battery energy: 2.432 kWh, calculated at 95% of nominal under ROCKSOLAR’s catalog standard. This is a planning estimate, not a manufacturer-stated usable-energy rating. The 80% depth of discharge used in cycle testing is separate from this estimate. Actual available energy varies with load, temperature, battery age and system limits; AC energy is lower after inverter losses.
2 x JA Solar 450W Panels (900W Total)
- Model: JAM54D40-450/LB, black-frame n-type double-glass bifacial module.
- Rated front-side power: 450W per panel at STC; 900W total for two panels. Actual output depends on sunlight, temperature, installation and rear-side exposure.
- Module efficiency: 22.5% at STC.
- Dimensions per panel: 1762 x 1134 x 30 mm; weight: 22 kg.
- Manufacturer warranty stated in the supplied datasheet: 12-year product warranty and 30-year linear power output warranty, subject to JA Solar warranty terms.
ROCKSOLAR 40A MPPT Solar Charge Controller:
- 40A MPPT Solar Charge Controller
- Compatible with Lithium and Lead Acid batteries
- Maximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%
- 3-stage charge algorithm and 12/24V nominal system voltage
- Rated charging current of 40A and battery voltage range of 8-32V
- Use charging and protection settings appropriate for the 24V-class battery bank. Follow the controller manual and battery manufacturer’s requirements; do not apply 12V-system settings to this bank.
- Operating temperature range of -20°C to 55°C
- IP30 rated for protection
ROCKSOLAR 24V 2000W Pure Sine Wave Power Inverter:
- 2000W Pure Sine Wave Power Inverter
- DC 24V to 120V AC Conversion
- 2.1A USB Charging Port
- Ideal for RVs, Camping, Off-grid power solutions, and more.

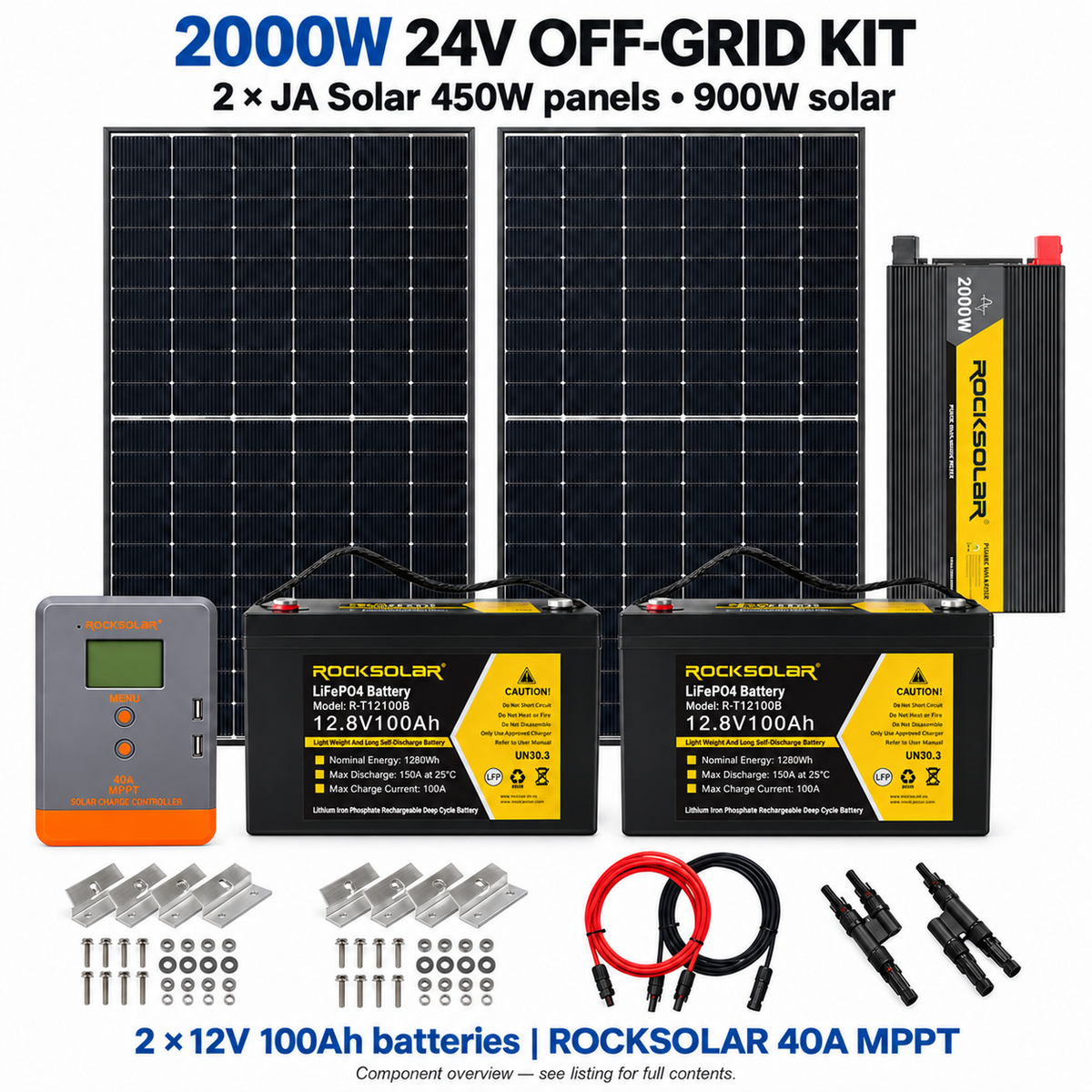

- 2 x 12V 100Ah Deep Cycle LiFePO4 Batteries
- 2 x JA Solar 450W JAM54D40-450/LB Solar Panels (900W total)
- 1 x 24V 2000W Pure Sine Wave Power Inverter
- 1 x 40A MPPT Solar Charge Controller
- 1 x 10 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black
- 1 X M8 cable
- 1 x Y Connector
- 2 x Z-Bracket Mount System (Set of 4)
- 1 x 2 String Waterproof Disconnect switch with DC breaker and Surge protection
- 1 x User Manual
3 components
Each one is a product we sell on its own, so you can read its full listing, and replace or add to it later.
Every number, by component.
The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.
Battery Bank: 2 x ROCKSOLAR 12V 100Ah LiFePO4 Batteries
| Quantity / model | 2 x R-T12100B batteries |
| Capacity per battery | 100Ah |
| Nominal voltage per battery | 12.8V (12V class) |
| Bank configuration | Series connection for the 24V system; follow the manufacturer's installation instructions |
| Bank nominal voltage | 25.6V |
| Bank capacity | 100Ah (series connection does not add Ah capacity) |
| Total nominal energy | 2560Wh (2 x 12.8V x 100Ah) |
| Estimated usable battery energy | 2432Wh (95% of nominal): planning estimate, not a manufacturer-stated usable rating. Actual energy varies; AC energy is lower after inverter losses. |
| Weight | Approximately 12 kg (26.5 lb) each without accessories; approximately 24 kg (52.9 lb) for the pair |
| Charge temperature | 0°C to 45°C |
| Discharge temperature | -20°C to 60°C |
| Battery warranty | 10 years |
JA Solar 450W Solar Panels
| Quantity | 2 panels |
| Model | JA Solar JAM54D40-450/LB |
| Construction | Black-frame n-type double-glass bifacial |
| Rated maximum power at STC (per panel) | 450W |
| Total front-side array rated power at STC | 900W |
| Open-circuit voltage (Voc, per panel at STC) | 39.30V |
| Maximum power voltage (Vmp, per panel at STC) | 32.82V |
| Short-circuit current (Isc, per panel at STC) | 14.48A |
| Maximum power current (Imp, per panel at STC) | 13.71A |
| Module efficiency at STC | 22.5% |
| Dimensions per panel | 1762 x 1134 x 30 mm |
| Weight per panel | 22 kg |
| Cells | 108 (6 x 18) |
| Front glass / back glass | 1.6 mm / 1.6 mm |
| Manufacturer product warranty | 12 years, subject to JA Solar warranty terms |
| Manufacturer linear power output warranty | 30 years, subject to JA Solar warranty terms |
| Rating conditions | STC: 1000 W/m² irradiance, 25°C cell temperature, AM1.5G. Electrical ratings above are per panel, not array wiring values. |
40A MPPT Solar Charge Controller Details
Charging settings: AGM, GEL and FLd values below describe lead-acid profiles, not charging settings for this kit’s LiFePO4 bank. Follow the controller manual and battery manufacturer’s requirements for the 24V-class lithium bank.
| Max Open Voltage of PV Module | 100Vdc |
| MPP Tracking Efficiency | 99.50% |
| Light Control Voltage | 5V |
| Charge Algorithm | 3 Stage |
| Battery Type | Lithium and Lead Acid Battery |
| Nominal System Voltage | 12/24V |
| Rated Charging Current | 40A |
| Battery Voltage Range | 8~32V |
| High Voltage Disconnection | Refer to the controller manual for the selected system voltage and battery profile; do not apply 12V settings to the 24V-class bank. |
| Duration for absorption charging | 2 hours |
| Charge Loop Voltage Drop | ≤0.29V |
| Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
| Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
| Absorption Charging voltage | AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
| Floating Charging voltage | AGM/ GEL/ FLd: 13.8V |
| Low Voltage re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
| Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
| Operating Temperature Range | -20℃~55℃ (To run at full rated current continuously) |
| LCD Temperature Range | -20℃~70℃ |
| Humidity Range | ≤95% No condensation |
| Protection Class | IP30 |
| Dimension | 123*178*48 mm |
| Installation Hole | 108*120 ∅5 mm |
| Warranty | 1 Year |
24V 2000W Pure Sine Wave Power Inverter Details
| Rated Power | 2000W |
| AC Voltage | 120V |
| Frequency | 60HZ |
| Resistive Load Continuous Output Power | 2000W |
| Inductive Load Continuous Output Power | 1500W The pump can start normally (beyond which protection may be possible without damaging the inverter) |
| Capacitive Load Continuous Output Power | 940±30W，PF：0.7 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter) |
| Waveform | Pure Sine Wave |
| Waveform Distortion（THD) | ≤5% |
| Voltage Range | 18V–32Vdc |
| Battery Voltage | 24Vdc |
| Shutdown Mode Static Current | 1mA |
| Maximum Efficiency | 91% (24V model, per manufacturer parameter table) |
| Over Temperature | Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output |
| Output Short Circuit | Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S |
| Overload | Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S |
| USB Output Voltage | 5V |
| USB Output Current | 2.1A |
| Working Temperature | -20～40℃ |
| Operating Humidity | 10～90%RH |
| Storage Temperature, Humidity | -30℃～70℃,10～95%RH |
| Weight | Net weight: 5.01 kg |
| Size | 420.4*208.9*110 mm (L*W*H) |
| Warranty | 1 Year |
