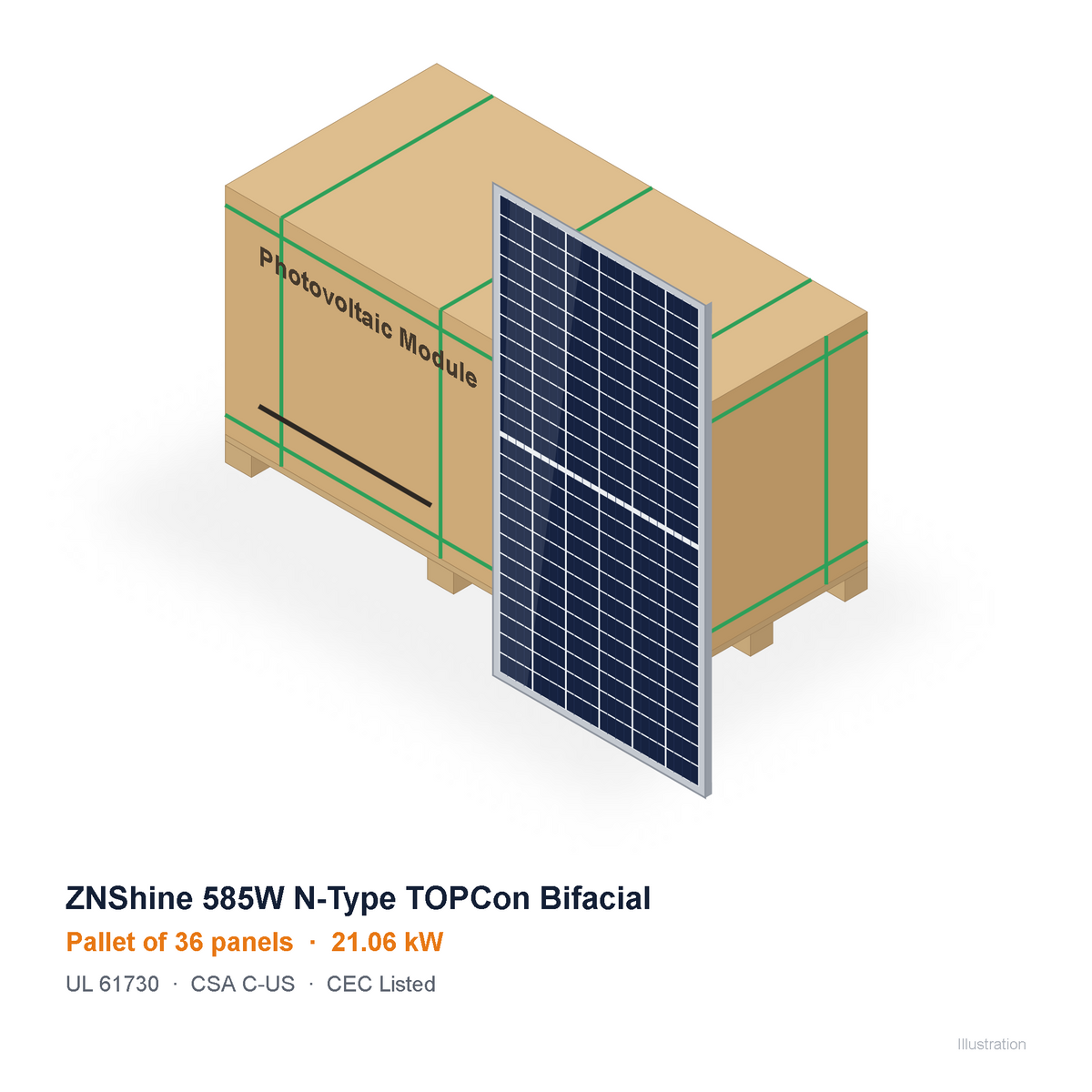

ZNShine 585W N-Type TOPCon Bifacial Solar Panel – Pallet of 36 (21.06kW, $0.345/W)
Pickup available at USA Fulfillment Center
Usually ready in 24 hours
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Speak To a Solar Specialist
ZNShine 585W N-Type TOPCon Bifacial Solar Panel – Pallet of 36 (21....
solar industry experience
10,000+ American
customers
return policy
Warranty
What it is, and what it is for
A full pallet of 36 ZNShine 585W bifacial panels: 21.06kW for $0.345 per watt, in stock in Las Vegas. N-type TOPCon, double glass, UL 61730 and CEC listed, with a 12-year product warranty and 30-year power warranty.
- 21.06kW per pallet. 36 panels × 585W, about $202 per panel.
- Up to 25% more energy from the back. Bifacial double-glass design, ideal for ground mounts and carports.
- Listed for US permits. UL 61730 and California Energy Commission (CEC) listed.
- 12-year product warranty, 30-year power warranty. 0.40% degradation per year.
- Tier 1 manufacturer. ZNShine Solar, founded 1988, listed by Bloomberg as Tier 1.
- Ships from Las Vegas. LTL freight, or free local pickup, usually ready in 24 hours.
Who it's for
Installers, contractors, farms and ranches, and anyone building a ground-mount, carport or large rooftop array. The 1500V system rating suits commercial string inverters, and the 51.7V open-circuit voltage works with common residential hybrid inverters.
Electrical specifications (STC)
| Specification | Value |
|---|---|
| Rated power (Pmax) | 585W |
| Module efficiency | 22.65% |
| Max power voltage (Vmp) | 43.00V |
| Max power current (Imp) | 13.61A |
| Open-circuit voltage (Voc) | 51.70V |
| Short-circuit current (Isc) | 14.41A |
| Power with 25% rear gain | 731W |
| Max system voltage | 1500V DC |
| Max series fuse | 30A |
| Temperature coefficient (Pmax) | −0.30%/°C |
| Temperature coefficient (Voc) | −0.25%/°C |
| Temperature coefficient (Isc) | +0.046%/°C |
| NMOT | 44 ± 2°C |
| Bifacial factor | 80 ± 10% |
Standard test conditions: 1000W/m², 25°C cell temperature, AM 1.5. Measurement tolerance ±3%.
Mechanical specifications
| Specification | Value |
|---|---|
| Model | ZXM7-UHLDD144-585 |
| Cells | 144 half-cut N-type TOPCon (6 × 24), 16 busbar |
| Dimensions | 89.7 × 44.6 × 1.2 in (2278 × 1134 × 30 mm) |
| Weight | 69 lb (31.5 ± 1.0 kg) |
| Glass | 2.0mm + 2.0mm heat-strengthened, anti-reflective coated (double glass) |
| Frame | Anodized aluminum |
| Junction box | IP68, 3 diodes |
| Cables and connectors | 4mm², 400mm leads, MC4-EVO2 |
| Static load | 5400Pa front, 2400Pa rear |
| Operating temperature | −40°F to 185°F (−40°C to 85°C) |
Pallet details
| Item | Value |
|---|---|
| Panels per pallet | 36 |
| Power per pallet | 21.06kW |
| Price per watt | $0.345 |
| Shipping weight | About 2,550 lb |
| Shipping | LTL freight from Las Vegas; calculated at checkout. Free local pickup. |
Buying several pallets or a full container? Get a volume quote.
Warranty and certifications
- Product warranty: 12 years.
- Power warranty: 30 years, 0.40% maximum degradation per year (87.4% of rated power at year 30).
- Certifications: UL 61730, IEC 61215, IEC 61730, IEC 61701 (salt mist), IEC 62716 (ammonia), CSA C-US, CE, California Energy Commission listed.
- Manufacturing: ISO 9001, ISO 14001, ISO 45001.
Frequently asked questions
How many panels are on a pallet?
36 panels, for 21.06kW total.
Is it CEC listed for California?
Yes. ZNShine lists this series with the California Energy Commission, so it qualifies for California permits and programs.
Will it work with my inverter?
Vmp is 43.0V and Voc is 51.7V (higher in cold weather). Send us your inverter model and we'll size the strings for you at no charge.
How much does shipping cost?
Freight is calculated at checkout from your address. Pallets ship by LTL truck, so you'll need a forklift or liftgate delivery. Free pickup is available in Las Vegas.
Can I buy fewer than 36 panels?
Yes, single panels are sold separately at $0.36/W.
1 component
Each one is a product we sell on its own, so you can read its full listing, and replace or add to it later.
Published before you buy. No email required.
Every number, by component.
The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.
| 585W Bifacial Solar Panel Specification | Details |
|---|---|
| Power Output | 585W |
| Module Efficiency | 22.65% |
| Cell Type | N-Type TOPCon Mono-Crystalline, 144 half-cut |
| Bifacial | Yes, double glass (up to 25% rear gain) |
| Voc / Isc | 51.70V / 14.41A |
| Vmp / Imp | 43.00V / 13.61A |
| Max System Voltage | 1500V DC |
| Connector | MC4-EVO2 |
| Front Load | 5400 Pa |
| Rear Load | 2400 Pa |
| Frame | Anodized Aluminum |
| Glass | 2.0mm + 2.0mm heat-strengthened (double glass) |
| Pallet Quantity | 36 Modules per Pallet (21.06kW) |
| Weight | 31.5 ± 1.0 kg (approx. 69 lb) |
| Dimensions (H × W × D) | 2278 × 1134 × 30 mm |
| Certifications | UL 61730, IEC 61215/61730, CEC listed |
| Warranty | 12-year product, 30-year power |
